Product Information

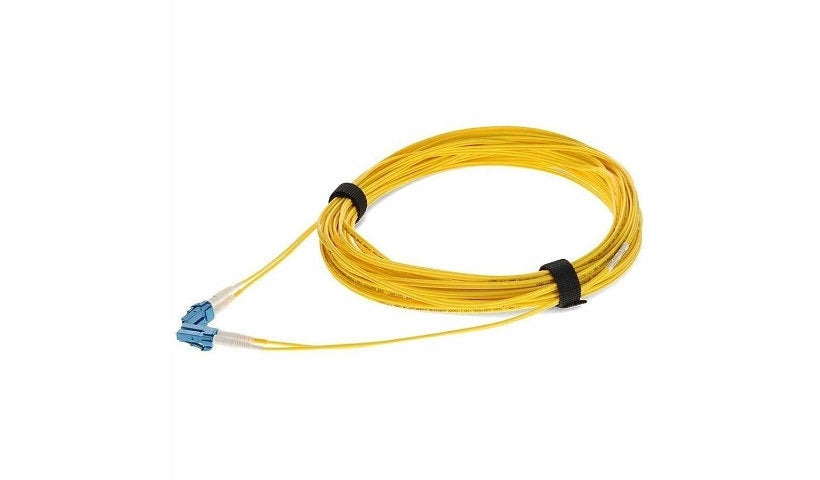

This 12 meter (39.4 ft) Proline patch cable runs on OS2 9/125 single mode fiber and has LC connectors on both ends. OS2 fiber is designed for low signal loss over long runs and supports network speeds from 1G up to 100G, so it works well for links between offices, data centers and industrial sites.
The duplex construction provides a separate fiber for transmit and receive. Connectors use a standard boot with UPC polished end faces. The yellow jacket carries an OFNR riser rating, so the cable can be run vertically through building risers between floors where riser rated cabling is required. Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-LC-LC-12M9SMF
Cable type: Patch cable
Cable and Fiber
Length: 12 m (39.4 ft)
Fiber: OS2 single mode, 9/125 µm
Cable mode: Duplex
Cable configuration: Straight-through
Jacket: OFNR (riser rated)
Color: Yellow
Features: Ultra Physical Contact (UPC)
Connectors
Connectors: LC (male) to LC (male)
Polish: UPC
Compatibility
Supported devices: Network Device
