Product Information

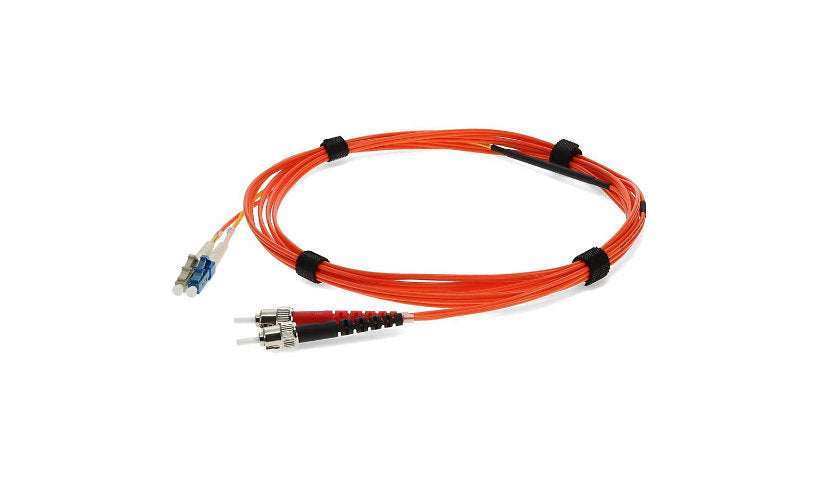

This 2 meter (6.6 ft) Proline mode conditioning cable links a single mode transceiver to an existing multimode fiber plant. One end has an orange ST (male) connector on OM2 50/125 multimode fiber and the other has a yellow LC (male) connector on OS2 9/125 single mode fiber.
The connectors are UPC polished with a standard boot, and the OFNR riser rated jacket is made for indoor runs, including vertical risers. Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-MODE-STLC5-2
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 2 m (6.6 ft)
Fiber: OM2 50/125 µm multimode and OS2 9/125 µm single mode
Cable configuration: Crossover
Jacket: OFNR (riser rated)
Shielding: None
Features: Bend Insensitive, Stranded, Ultra Physical Contact (UPC)
Connectors
Connectors: ST (male, OM2 orange) to LC (male, OS2 yellow)
Polish: UPC
Physical and Environmental
Width: 0.3 inch
Height: 0.1 inch
Weight: 0.10 lb
Compatibility
Supported devices: Network Device
Standards compatibility: TIA Compliant
Typical use: Business, Data Transmission, Indoor
Compliance and Warranty
TAA compliant: No
Country of origin: China
