Product Information

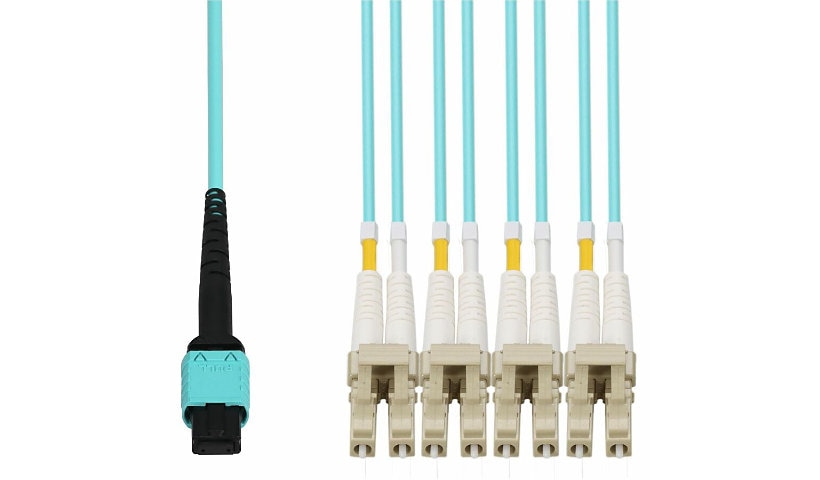

Break one MPO port out to four duplex LC connections with this 1 meter (3.3 ft) Proline fanout cable. A female MPO/UPC connector on one end splits into eight male LC/UPC connectors (four duplex pairs) on the other, carrying 8 strands of OM3 50/125 multimode fiber. OM3 handles 10 Gbps links at distances up to 300 meters.
The aqua jacket is OFNR riser rated for vertical runs through building risers, and the connectors use a standard boot. Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-MPO-4LC1M5OM3
Cable type: Fan-out cable
Package quantity: 1
Cable and Fiber
Length: 1 m (3.3 ft)
Fiber: OM3 multimode, 50/125 µm
Fiber count: 8
Jacket: OFNR (riser rated)
Shielding: None
Color: Aqua
Connectors
Connectors: 1x MPO/UPC (female) to 8x LC/UPC (male), 4 duplex pairs
Compatibility
Supported devices: Network Device
Compliance and Warranty
Manufacturer warranty: Lifetime
