Product Information

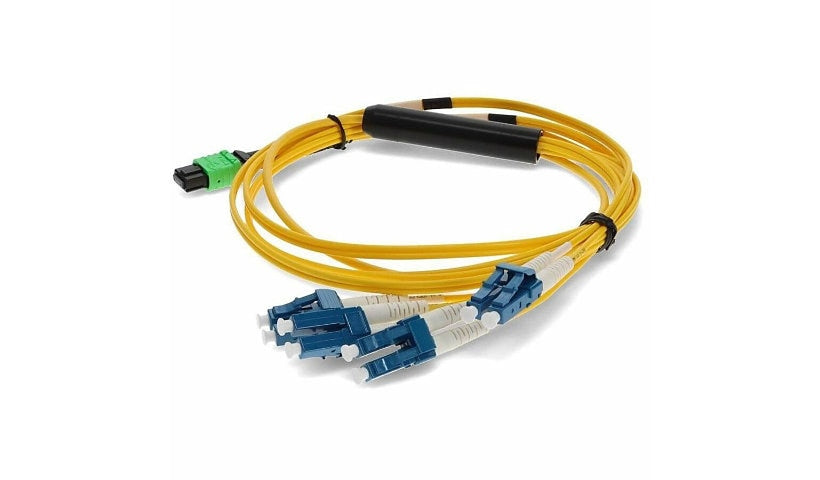

This 1 meter (3.3 ft) Proline fanout cable splits a female MPO/APC connector into eight male LC/UPC connectors, four duplex pairs, over 8 strands of OS2 single mode fiber. OS2 is the standard single mode fiber type defined in ISO/IEC 11801. It is usually run at 1310 nm and 1550 nm and has a maximum attenuation of 1 dB/km.
The angled (APC) polish on the MPO end and the yellow OFNR riser rated jacket make it a good fit for indoor single mode breakout work, including vertical riser runs.
General
Brand: Proline
Part number: PRO-MPO-4LC1M9SMF
Cable type: Fan-out cable
Cable and Fiber
Length: 1 m (3.3 ft)
Fiber: OS2 single mode, 9/125 µm
Fiber count: 8
Cable configuration: Straight-through
Jacket: OFNR (riser rated)
Color: Yellow
Features: Angled Physical Contact (APC), Stranded
Connectors
Connectors: 1x MPO/APC (female) to 8x LC/UPC (male), 4 duplex pairs
Compatibility
Supported devices: Network Device
