Product Information

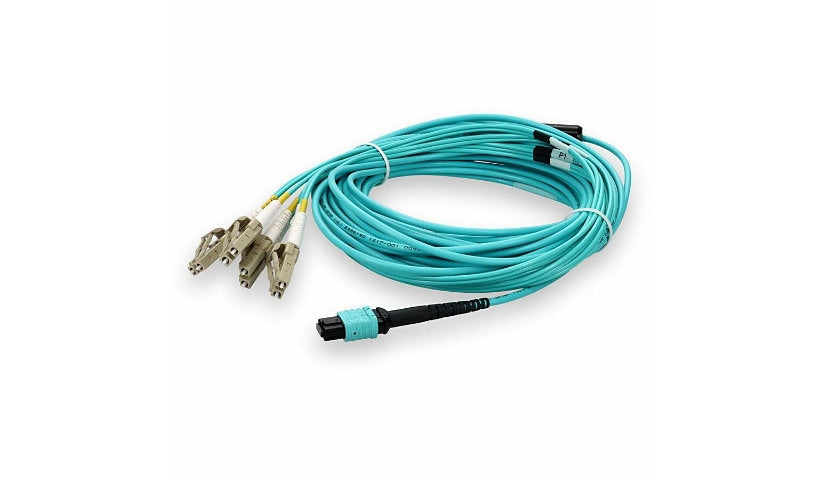

Break one MPO port out to four duplex LC connections with this 20 meter (65.6 ft) Proline fanout cable. A female MPO connector on one end splits into eight male LC connectors (four duplex pairs) on the other, carrying 8 strands of OM4 50/125 multimode fiber. OM4 supports 10 Gigabit Ethernet at up to 550 meters and 100 Gigabit Ethernet at up to 150 meters, and it is backward compatible with OM3.
The aqua jacket is plenum rated, the type required in air handling spaces such as raised floors and ducts, where cables must self extinguish and resist re-ignition.
General
Brand: Proline
Part number: PRO-MPO-4LC20M5OM4P
Cable type: Fan-out cable
Cable and Fiber
Length: 20 m (65.6 ft)
Fiber: OM4 multimode, 50/125 µm
Fiber count: 8
Data transfer rate: 100 Gbit/s
Jacket: OFNP (plenum rated)
Color: Aqua
Features: Self-extinguishing, Stranded
Connectors
Connectors: 1x MPO/UPC (female) to 8x LC/UPC (male), 4 duplex pairs
Compatibility
Supported devices: Network Device
