Product Information

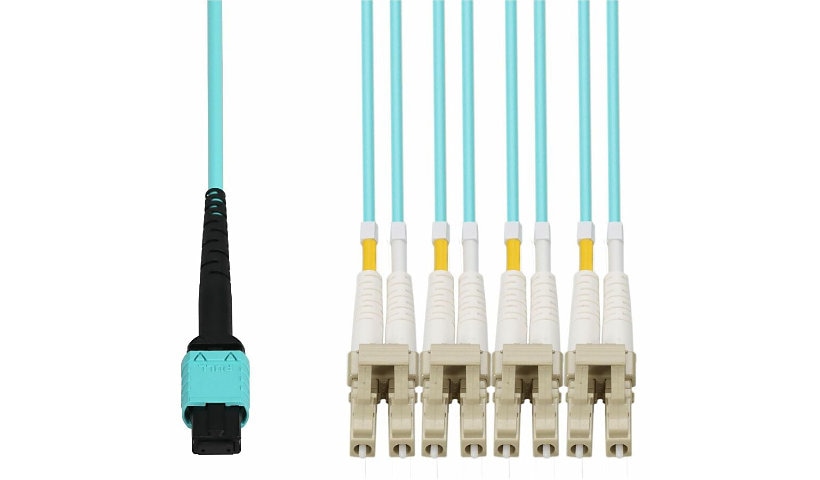

Break one MPO port out to four duplex LC connections with this 3 meter (9.8 ft) Proline fanout cable. A female MPO connector on one end splits into eight male LC connectors (four duplex pairs) on the other, carrying 8 strands of OM4 50/125 multimode fiber. OM4 supports 10 Gigabit Ethernet at up to 550 meters and 100 Gigabit Ethernet at up to 150 meters, and it is backward compatible with OM3.
The aqua jacket is an optical fiber nonconductive riser (OFNR) type, made for indoor fiber installations including vertical riser runs.
General
Brand: Proline
Part number: PRO-MPO-4LC3M5OM4-1MBO
Cable type: Fan-out cable
Package quantity: 1
Cable and Fiber
Length: 3 m (9.8 ft)
Fiber: OM4 multimode, 50/125 µm
Fiber count: 8
Cable configuration: Crossover
Jacket: OFNR (riser rated)
Shielding: None
Color: Aqua
Features: Booted, Ultra Physical Contact (UPC)
Connectors
Connectors: 1x MPO/UPC (female) to 8x LC/UPC (male), 4 duplex pairs
Physical and Environmental
Width: 0.3 inch
Height: 0.1 inch
Weight: 0.20 lb
Compatibility
Supported devices: Network Device
Typical use: Indoor
Compliance and Warranty
TAA compliant: No
Country of origin: China
