Product Information

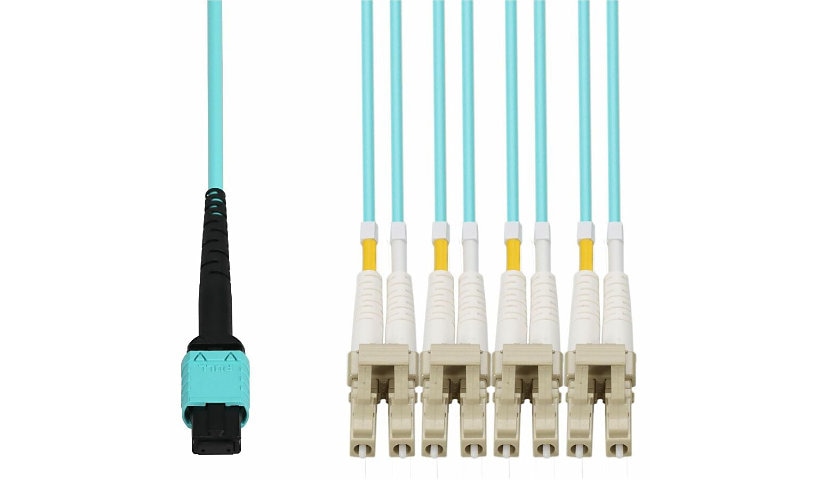

Break one MPO port out to four duplex LC connections with this 3 meter (9.8 ft) Proline fanout cable. A female MPO connector on one end splits into eight male LC connectors (four duplex pairs) on the other, carrying 8 strands of OM4 50/125 multimode fiber. OM4 supports 10 Gigabit Ethernet at up to 550 meters and 100 Gigabit Ethernet at up to 150 meters, and it is backward compatible with OM3.
The aqua low smoke zero halogen (LSZH) jacket limits toxic smoke and fumes in a fire, which suits enclosed rooms and busy, poorly ventilated areas.
General
Brand: Proline
Part number: PRO-MPO-4LC3M5OM4LZ
Cable type: Fan-out cable
Package quantity: 1
Cable and Fiber
Length: 3 m (9.8 ft)
Fiber: OM4 multimode, 50/125 µm
Fiber count: 8
Cable configuration: Crossover
Data transfer rate: 100 Gbit/s
Jacket: LSZH (OFNG)
Shielding: None
Color: Aqua
Features: Bend Insensitive, Stranded, Ultra Physical Contact (UPC)
Connectors
Connectors: 1x MPO/UPC (female) to 8x LC/UPC (male), 4 duplex pairs
Physical and Environmental
Width: 0.3 inch
Height: 0.1 inch
Weight: 0.20 lb
Compatibility
Supported devices: Network Device
Standards compatibility: TIA Compliant
Typical use: Business, Data Center, Data Transmission, Indoor
Compliance and Warranty
TAA compliant: No
Country of origin: China
