Product Information

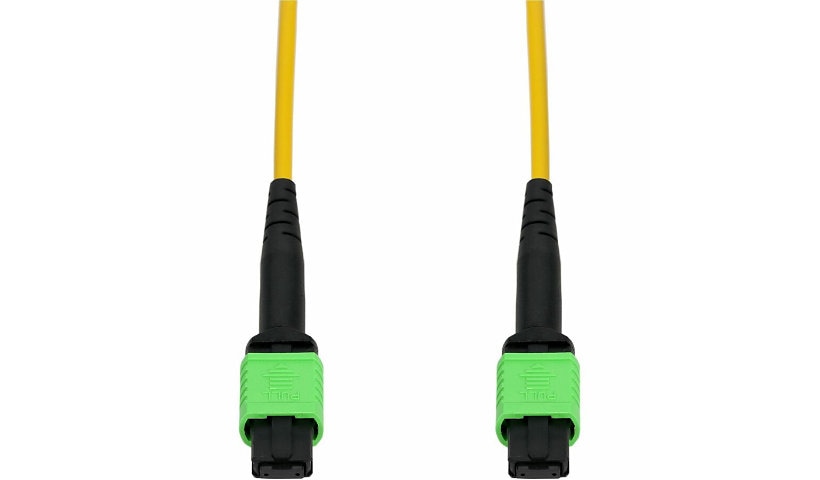

This 15 meter (49.2 ft) Proline trunk style cable carries 12 strands of os2 single mode 9/125 fiber between two female MPO connectors with angled (APC) polish, wired for Type-B (crossover) polarity. OS2 is the standard single mode fiber type defined in ISO/IEC 11801, usually run at 1310 nm and 1550 nm with a maximum attenuation of 1 dB/km.
The yellow jacket carries an OFNR riser rating, so the cable can be run vertically through building risers between floors where riser rated cabling is required. The connectors use a standard boot, and Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-MPOMPO-15M9SMF
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 15 m (49.2 ft)
Fiber: OS2 single mode, 9/125 µm
Fiber count: 12
Cable configuration: Crossover
Jacket: OFNR (riser rated)
Shielding: None
Color: Yellow
Features: Angled Physical Contact (APC), Stranded
Connectors
Connectors: MPO/APC (female) to MPO/APC (female)
Polish: APC
Compatibility
Supported devices: Network Device
