Product Information

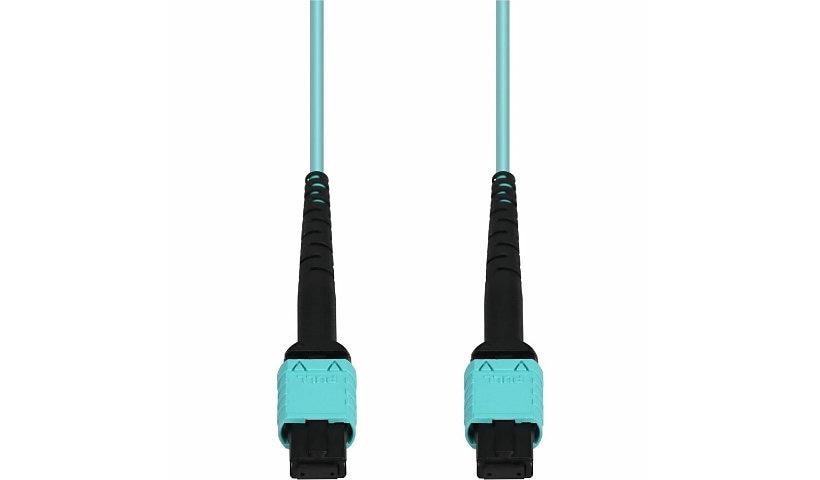

This 7 meter (23 ft) Proline trunk style patch cable carries 12 strands of OM4 50/125 multimode fiber between two MPO (female) connectors with UPC polished ends. OM4 is laser optimized for high speed, short reach links and supports 100G at distances up to 150 meters, so this cable fits high density data center and enterprise backbone work.
The aqua jacket is OFNP plenum rated, so it can be installed in air handling spaces such as drop ceilings and raised floors. The connectors use a standard boot, and Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-MPOMPO-7M5OM4P
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 7 m (23 ft)
Fiber: OM4 multimode, 50/125 µm
Fiber count: 12
Cable configuration: Crossover
Data transfer rate: 100 Gbit/s
Jacket: OFNP (plenum rated)
Shielding: None
Color: Aqua
Features: Fire Resistant, Stranded, Ultra Physical Contact (UPC)
Connectors
Connectors: MPO (female) to MPO (female)
Polish: UPC
Physical and Environmental
Width: 0.3 inch
Height: 0.1 inch
Weight: 0.40 lb
Compatibility
Supported devices: Network Device
Compliance and Warranty
TAA compliant: No
Country of origin: China
