Product Information

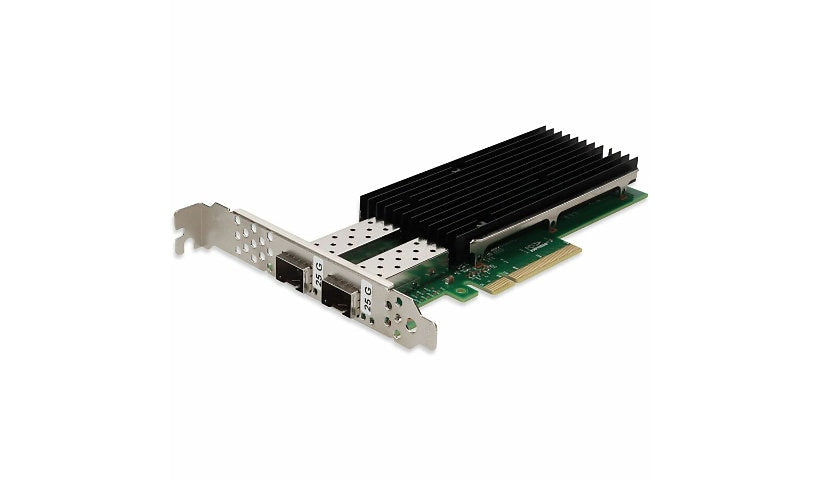

The Proline PRO-PCIE3-2SFP28 is a dual port 25 Gigabit network card with two open SFP28 slots on a PCIe 3.0 x8 interface, built on the Intel XXV710 chipset. You can fit multimode or single mode transceivers of your choice, and it supports PXE boot and VLAN filtering on Windows, Windows Server, Linux and FreeBSD. It is not TAA compliant. The description mentions 10 Gbps and SFP+ ports, but the spec lists 25G SFP28; the spec values are used here.
Key Features
- 2 x open SFP28 slots
- Intel XXV710 chipset
- PCIe 3.0 x8
- Use your own optics
- PXE boot support
- VLAN filtering
Product Information
Brand: Proline
Manufacturer: Proline
Product Type: 25Gigabit Ethernet Card
Usage: Network
Compatibility: FreeBSD 7.2, Linux Kernel 2.4.x, Linux Kernel 2.6.30, Linux Kernel 2.6.x, Linux Kernel 3.x, Windows 7 x32, Windows 7 x64, Windows 8 x32, Windows 8 x64, Windows 8.1 x32, Windows 8.1 x64, Windows Server 2003 x32, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2008 x32, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2 x64, Windows Small Business Server 2010, Windows Vista x64, Windows XP x64
Included Quantity: 1
Country of Origin: China
Network and Communication
Network Technology: 25GBase-X
Max Data Transfer Rate: 200 Gbit/s
Max Transfer Distance: 328.08 ft
Fiber Mode Supported: Multi-mode, Single-mode
Connectivity
Ports: 2
Expansion Slot Type: SFP28
Host Interface: PCI Express 3.0 x8
Memory and Processor
Chipset Manufacturer: Intel
Chipset Model: XXV710
Physical Characteristics
Form Factor: Plug-in Card
Supported Devices: Server
Dimensions and Weight
Height: 8 inch
Width: 4 inch
Depth: 1 inch
Weight: 6.40 ounce
Certifications and Listing
TAA Compliant: No
