Product Information

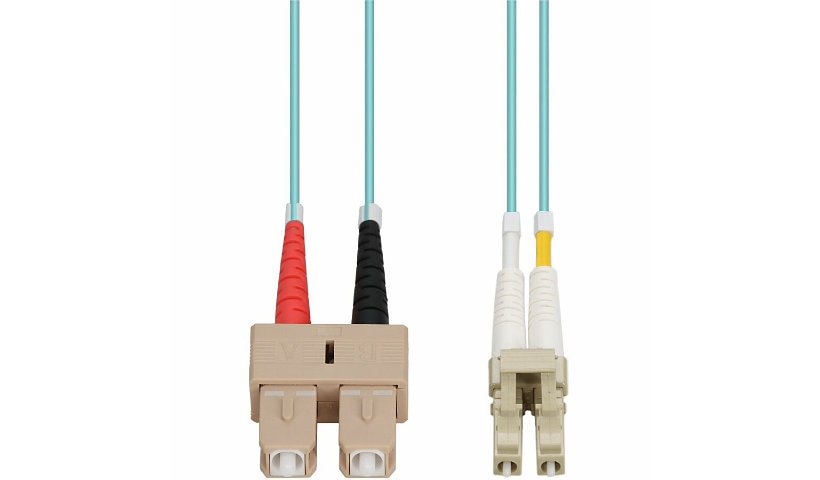

This 3 meter (9.8 ft) Proline patch cable uses OM4 50/125 multimode fiber and has an SC connector on one end and an LC connector on the other. OM4 is the laser optimized multimode grade built for fast, short reach links, with support for 100G at distances up to 150 meters. That makes it a dependable fit for switch, server and storage connections in data centers and larger enterprise networks.
The duplex layout gives you two fibers, one to transmit and one to receive. The connectors have a standard boot and UPC polished end faces. The aqua jacket carries an OFNR riser rating, so the cable can be run vertically through building risers between floors where riser rated cabling is required. Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-SC-LC-3M5OM4
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 3 m (9.8 ft)
Fiber: OM4 multimode, 50/125 µm
Cable mode: Duplex
Cable configuration: Crossover
Data transfer rate: 100 Gbit/s
Jacket: OFNR (riser rated)
Shielding: None
Color: Aqua
Features: Bend Insensitive, Fire Resistant, Riser Rated, Stranded, Ultra Physical Contact (UPC)
Connectors
Connectors: SC (male) to LC (male)
Polish: UPC
Physical and Environmental
Width: 0.3 inch
Height: 0.1 inch
Weight: 0.20 lb
Compatibility
Supported devices: Network Device
Standards compatibility: TIA Compliant
Compliance and Warranty
TAA compliant: No
Country of origin: China
