Product Information

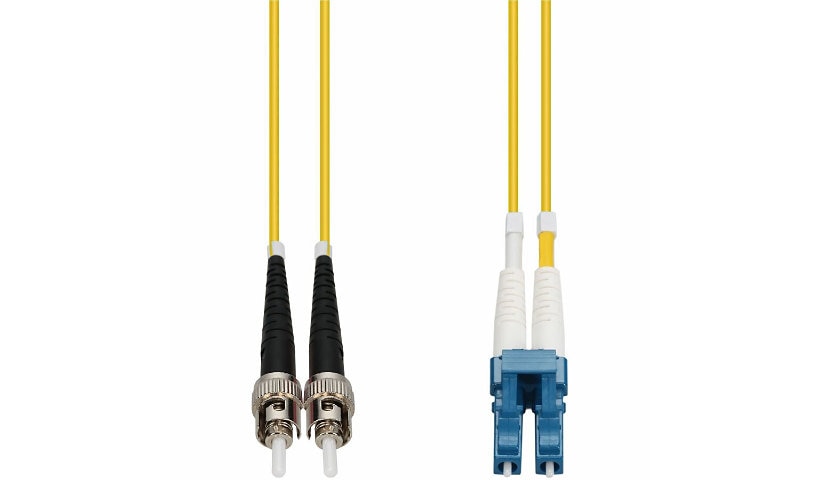

This 2 meter (6.6 ft) Proline patch cable runs on OS2 9/125 single mode fiber and has an ST connector on one end and an LC connector on the other. OS2 fiber is designed for low signal loss over long runs and supports network speeds from 1G up to 100G, so it works well for links between offices, data centers and industrial sites.
The duplex construction provides a separate fiber for transmit and receive. Connectors use a standard boot with UPC polished end faces. The yellow jacket carries an OFNR riser rating, so the cable can be run vertically through building risers between floors where riser rated cabling is required. Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-ST-LC-2M9SMF
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 2 m (6.6 ft)
Fiber: OS2 single mode, 9/125 µm
Cable mode: Duplex
Cable configuration: Crossover
Data transfer rate: 100 Gbit/s
Jacket: OFNR (riser rated)
Shielding: None
Color: Yellow
Features: Bend Insensitive, Fire Resistant, Riser Rated, Stranded, Ultra Physical Contact (UPC)
Connectors
Connectors: ST (male) to LC (male)
Polish: UPC
Physical and Environmental
Width: 0.3 inch
Height: 0.1 inch
Weight: 0.10 lb
Compatibility
Supported devices: Network Device
Standards compatibility: TIA Compliant
Compliance and Warranty
TAA compliant: No
Country of origin: China
