Product Information

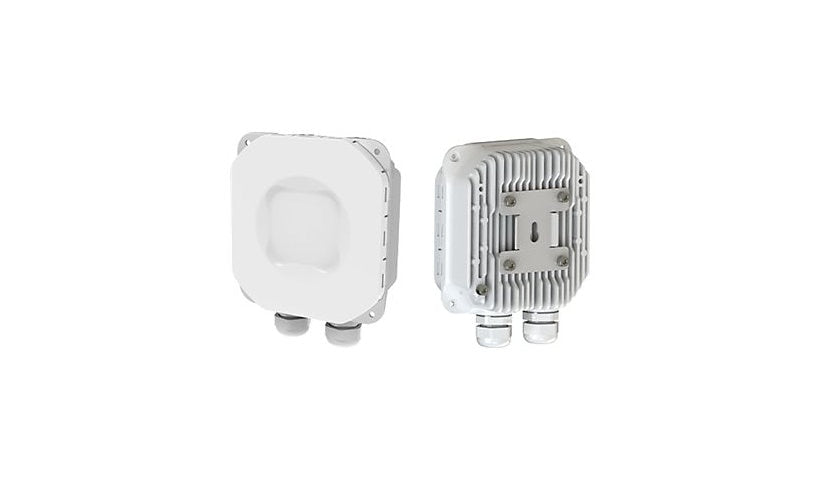

The Proxim GX60-6019X-WD (GX60-6019X-US) is an outdoor 60 GHz wireless bridge radio, not a standalone antenna, rated for 2 Gbps throughput with beamforming and up to 38 dBm EIRP. It can work as a bridge or an access point and uses TDD and TDMA. Ports are one gigabit PoE RJ-45 and one 2.5 GbE PoE RJ-45. Management covers SNMP v1, v2c and v3, a RESTful API, TLS 1.3, VLAN and QinQ, LLDP, NTP, syslog and dual stack IPv4/IPv6, with 128-bit AES and AES-GCMP encryption. It draws about 41 W, runs from -30 to 55 C at up to 100 percent humidity, and comes with a power injector, back plate and two M25 weatherproof cable glands.
Key Features
- 60 GHz bridge, not an antenna
- Up to 2 Gbps, beamforming
- 1 GbE and 2.5 GbE PoE ports
- SNMP, REST API, VLAN
- 128-bit AES encryption
- Injector and glands included
Product Information
Brand: Proxim
Manufacturer: Wincomm
Product Line: Proxim
Model: GX60-6019X-WD
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: Gray, White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: RESTful API, SNMP 1, SNMP 2c, SNMP 3, TLS 1.3
Encryption: 128-bit AES, 128-bit AES-GCMP
Network Device: Maximum effective isotropic radiated power: 38 dBm, Throughput: 2 Gbps
Frequency Band: 60 GHZ
Features: Access Point operational mode, Beamforming technology, Bridge mode, IPv4 and IPv6 dual stack, LLDP support, NTP support, Outdoor, QinQ VLAN, Static IP address support, Syslog support, Time Division Duplexing (TDD), Time Division Multiple Access (TDMA), VLAN management, Web authentication
Connectivity
Interface Provided: 1 x 10/100/1000Base-T(X) (PoE) - RJ-45, 1 x 2.5Gb Ethernet (PoE) - RJ-45
Power
Power Consumption Operational: 41 watt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 100%
MTBF: 450,000 Year
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 2.2 inch
Width: 5.1 inch
Depth: 4.7 inch
Weight: 14.99 ounce
Included Items
Included Accessories: 2 x M25 weatherproof cable gland, Back plate, Power injector
Certifications and Listing
Compliant Standards #2: IEEE 802.1Q, IEEE 802.3at
Compliant Standards: BS EN 50385:2017, BS EN 55032:2015+A1:2020, BS EN 55035:2017+A11:2020, BS EN IEC 62368-1:2020 + A11:2020, CFR Title 47 Part 15 Class B, CSA C22.2 No. 62368-1:19, EMC, EMI, EN 301-489-1, EN 301-489-17, EN 303 722, EN 50385:2017, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020 + A11:2020, FCC Part 15 C, ICES-003 Issue 7: 2020 Class B, IEC 62368-1:2018, IP67, RSS-210 Issue 11:2024, UL 62368-1:2019
Compliant Standards: IEEE 802.1Q, IEEE 802.3at
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
