Product Information

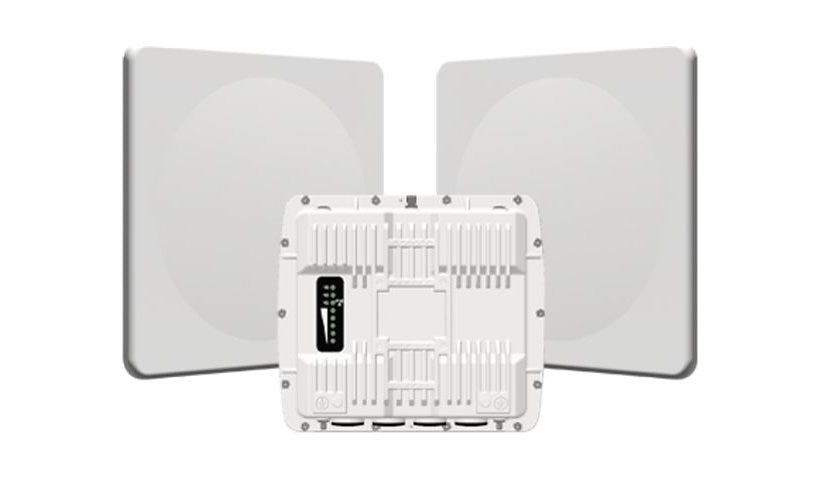

Proxim's Stratum X3 (SX3-1021A-US) is an outdoor 5 GHz bridge endpoint with up to 755 Mbps throughput, 20/40/80 MHz channels and AES and TLS 1.3 security. It has Gigabit data, PoE in and PoE out ports, two RP-SMA antenna ports plus internal antennas, a -40 to 140 °F range and includes mounting, grounding and cable gland parts. This is a bridge radio, not a standalone antenna.
Key Features
- 5 GHz bridge endpoint
- Up to 755 Mbps
- Gigabit + PoE in + PoE out
- 2 x RP-SMA + internal antennas
- -40 to 140 °F
- Mount and grounding kits
Product Information
Brand: Proxim
Manufacturer: Proxim
Product Line: Proxim Stratum X3
Model: SX3-1021A-US
Product Type: Wireless bridge
Device Type: Power injector
Packaged Quantity: 1
Color Category: Gray
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Gigabit Ethernet
Network Standard: IPv4, IPv6, PPPoE
Remote Management: SNMP 1, SNMP 2c, SNMP 3, SSH-2, Syslog, Telnet, TFTP, TLS
Routing Protocol: PPPoE, WORP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2)
Encryption: 128-bit AES, TLS 1.3
Data Transfer Rate: 1 GBps
Line Coding Format: 1024 QAM, BPSK, OFDM
Spread Spectrum Method: OFDM
Network Device: Channel width: 20 / 40 / 80 MHz, Throughput: 755 Mbps
Antennas: 4
Antenna Form Factor: External detachable and internal
Frequency Band: 5 GHZ
Features: 180 km/h wind survival, 2x2:2 streams, Auto-uplink (auto MDI/MDI-X), Backhaul Technology, Bridge mode, DHCP relay, DHCP server, DNS proxy, Metal housing, NAT support, Point-to-Multipoint (PtMP) link mode, Point-to-Point (PtP) link mode, Proxim BlueConnect, Proxim ClearConnect, QinQ VLAN, Quality of Service (QoS), Router mode, Rugged, SNTP support, Spectrum analyzer, VLAN support
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x 1000Base-T (PoE input) - RJ-45, 1 x 1000Base-T (PoE output) - RJ-45, 2 x antenna - RP-SMA
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 100%
MTBF: 450,000 Hours
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 12 inch
Width: 12 inch
Depth: 3 inch
Weight: 4.85 lbs
Included Items
Included Accessories: 2 x cable glands M25, Grounding kit, Mounting kit, Port protective caps, Power cable (US)
Certifications and Listing
Compliant Standards: BS EN IEC 62368-1:2020 + A11:2020, CSA C22.2 No. 62368-1:19, EN IEC 62368-1:2020+A11:2020, FCC CFR47 Part 15 B Class A, FCC Part 15 Subpart C 15.247, FCC Part 15.205, FCC Part 15.207, FCC Part 15.209, FCC Part 15.247, FCC Subpart E 15.407, IEC 62368-1:2018, IP67, UL 62368-1:2019
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3at
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
