Product Information

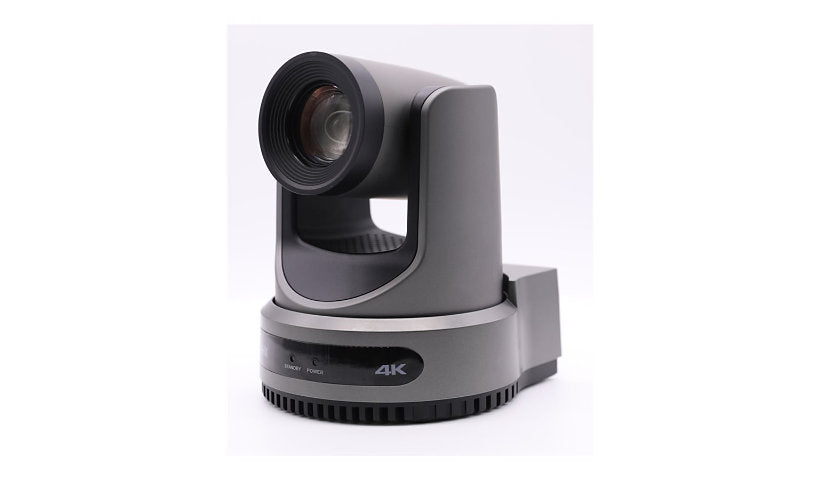

The PTZOptics Move 4K PT12X-4K-GY-G3 is a gray 4K60 PTZ camera with 12x optical zoom for video production and streaming. It outputs HDMI, 3G-SDI, USB and IP with NDI|HX3, has auto tracking, a tally light, 255 presets, audio in and RS-232/RS-485 control. Remote, power adapter and cables included. Indoor. It is a production camera, not a security camera.
Key Features
- 4K60 PTZ
- 12x optical zoom
- HDMI, 3G-SDI, NDI|HX3
- Auto tracking
- Tally light
- Remote, adapter included
Product Information
Brand: PTZOptics
Manufacturer: PTZOptics
Product Line: PTZOptics Move 4K
Model: PT12X-4K-GY-G3
Packaged Quantity: 1
Color: Gray
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple iOS, Apple MacOS, Linux, Windows
Features: 255 preset positions, 3D Noise Reduction Technology, Aluminum housing, Auto tracking, Image flip, Image freeze, Image mirror, IP Streaming, NDI|HX3 technology, Photobooth mode, Plastic housing, Tally light, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTMP, RTSP, SRT
Ports: 3G-SDI - BNC, Audio line in - 3.5 mm jack, HDMI, LAN/power - RJ-45, Serial RS-232 input - 8 pin mini-DIN, Serial RS-232 output - 8 pin mini-DIN, Serial RS-485 - terminal block, USB 2.0 - 4 pin USB Type A
Technical Information
Angular Field of View (H, Max, Degree): 72.5
Angular Field of View (V, Max, Degree): 44.8
Video Signals: 3G-SDI, HDMI, USB
Max Focal Length: 52.8 millimetre
Optical Zoom: 12
Control Interface: RS-232, RS-485
Camera Type: Conference camera
Digital Zoom: 16
Max Panning Speed (degree/sec): 100
Max Tilting Speed (degree/sec): 69.9
Tilt: -30 to +90
Panning Range (degree): -170 to +170
Angular Field of View (H, Min, Degree): 6.9
Angular Field of View (V, Min, Degree): 3.9
Minimum Illumination: 0.5 lux F1.8 - AGC on
Total Pixels: 8,510,000 pixels
Video Modes: 1080/25p, 1080/29.97PsF, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60i, 1080/60p, 2160/25p, 2160/29.97p, 2160/30p, 2160/50p, 2160/59.94p, 2160/60p, 720/59.94p, 720/60p
Image Sensor Size: 1/2.5"
Image Sensor Type: CMOS
Lens Aperture: F/1.8-2.6
Min Focal Length: 4.4 millimetre
Sensor Size (metric): 10.2 mm (1/2.5")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 256 x 144, 3840 x 2160, 480 x 270, 960 x 540
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Video Formats: H.264, H.265, HEVC
Video Input: Color
Audio Support: Yes
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Indoor
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 6.5 inch
Width: 6.6 inch
Depth: 5.6 inch
Weight: 3.24 lbs
Included Items
Included Accessories: 2 AA batteries, Power adapter, Remote control
Cables: 1 x RS-232 cable - external, 1 x USB-A cable - external
