Product Information

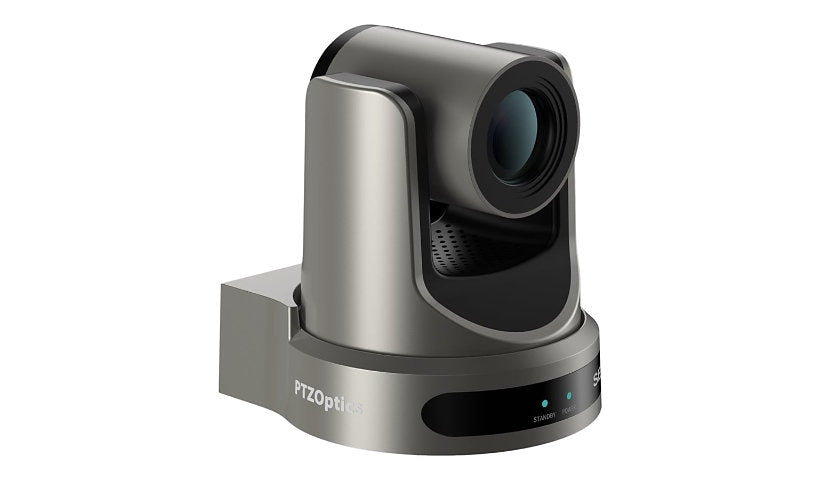

The PTZOptics Move SE PT30X-SE is a gray 1080p60 PTZ camera with 30x optical zoom, built for video production and conferencing. It outputs HDMI, 3G-SDI, USB 3.0 (USB-C) and IP streams, has an audio line in, RS-232 and RS-485 control, auto tracking and 255 presets, and runs on 12 V DC or PoE. Indoor. It is a conference camera, not a surveillance camera.
Key Features
- 1080p60 PTZ
- 30x optical zoom
- HDMI, 3G-SDI, USB-C
- Auto tracking
- 255 presets
- 12 V DC or PoE
Product Information
Brand: PTZOptics
Manufacturer: PTZOptics
Product Line: PTZOptics Move SE
Model: PT30X-SE
Packaged Quantity: 1
Color: Gray
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Features: 255 preset positions, 2D Digital Noise Reduction Technology, 3D Digital Noise Reduction Technology, Aluminum housing, Auto tracking, Auto white balance, Backlight Compensation (BLC), Image flip, Image freeze, Image mirror, Manual white balance, Plastic housing, Security slot (Kensington security lock compatible)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: RTMP, RTMPS, RTSP, SRT
Ports: 3G-SDI - BNC, Audio line in - 3.5 mm jack, HDMI, LAN/power - RJ-45, Serial RS-232 input - 8 pin mini-DIN, Serial RS-232 output - 8 pin mini-DIN, Serial RS-485 - 2 pin Phoenix, USB 3.0 - 24-pin USB-C
Technical Information
Angular Field of View (H, Max, Degree): 60.7
Angular Field of View (V, Max, Degree): 34.1
Infrared Distance: 30 ft
Infrared LEDs: 4
Video Signals: 3G-SDI, HDMI
Max Focal Length: 132.6 millimetre
Optical Zoom: 30
Control Interface: RS-232, RS-485
Camera Type: Conference camera
Digital Zoom: 16
Max Panning Speed (degree/sec): 100
Max Tilting Speed (degree/sec): 69.9
Tilt: -30 to +90
Panning Range (degree): -170 to +170
Angular Field of View (H, Min, Degree): 2.3
Angular Field of View (V, Min, Degree): 1.28
Minimum Illumination: 0.5 lux F1.8 - AGC on
Total Pixels: 2,130,000 pixels
Video Modes: 1080/25p, 1080/29.97PsF, 1080/30p, 1080/50p, 1080/59.94p, 1080/60p, 720/50p, 720/60p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.8-2.8
Min Focal Length: 4.42 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Indoor
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 6.5 inch
Width: 5.6 inch
Depth: 6.7 inch
Weight: 3.19 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3af, NDAA
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
