Product Information

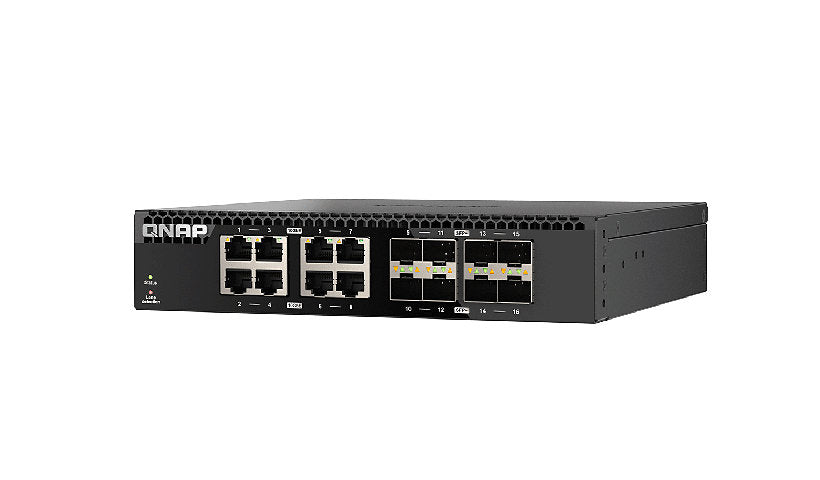

QNAP's QSW-3216R-8S8T-US is a half width rackmount switch with eight 10G SFP+ ports and eight 10G RJ-45 ports that also run at 100M to 5G. It is unmanaged with loop detection, 160 Gbps non-blocking throughput and two cooling fans.
Key Features
- 8 x 10G SFP+ ports
- 8 x 10G RJ-45 multi-gig ports
- 160 Gbps non-blocking throughput
- Unmanaged with loop detection
- Half width rackmount
- Internal power supply
Product Information
Brand: QNAP
Manufacturer: QNAP
Product Line: QNAP
Model: QSW-3216R-8S8T
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: 10 Gigabit Ethernet
Performance: Non-blocking switching throughput: 160 Gbps, Switching capacity: 240 Gbps
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9KB
Features: 2 fans, Layer 2 switching, Reset button, Unmanaged
Connectivity
Ports: 16
Port Quantity: 8
Port Type: 100/1000/2.5G/5G/10GBase-T
Ports (2nd) Quantity: 8
Ports Type (2nd): 10Gb Ethernet SFP+
Interface Provided: 8 x 10Gbit LAN RJ-45, 8 x 10Gbit LAN SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Status Indicators: Link/activity/speed, Power, Status
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 8.1 inch
Depth: 7.9 inch
Weight: 3.35 lbs
Included Items
Included Accessories: Power cord
Certifications and Listing
Compliant Standards: BSMI, Class A, FCC, VCCI
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
