Product Information

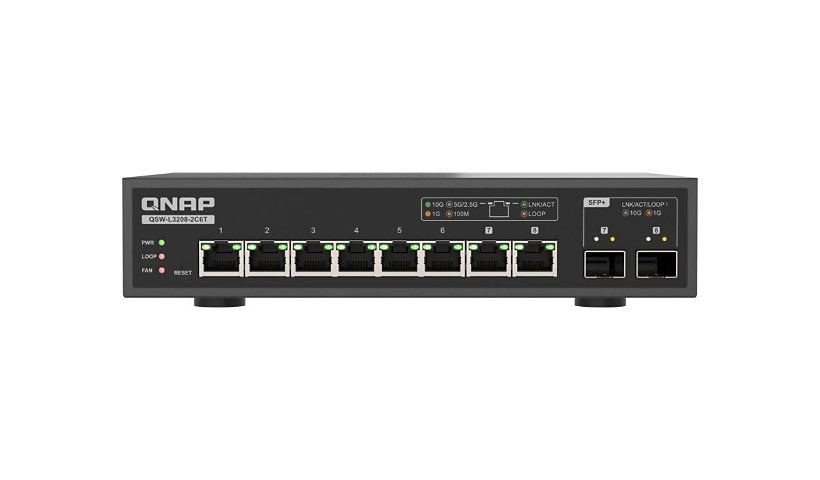

QNAP's QSW-L3208-2C6T is a managed desktop switch with eight multi-gig RJ-45 ports (100M up to 10G) plus two 10G SFP+ ports. It supports LACP, IGMP snooping and loop protection, with 160 Gbps of capacity. A rack mount kit is included.
Key Features
- 8 x 100M/1G/2.5G/5G/10G RJ-45 ports
- 2 x 10G SFP+ ports
- 160 Gbps switching capacity
- Managed: LACP, IGMP snooping, QoS
- Rack mount kit and power adapter included
Product Information
Brand: QNAP
Manufacturer: QNAP
Product Line: QNAP
Model: QSW-L3208-2C6T
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: DHCP, DNS, HTTPS, IPv4
Performance: Non-blocking switching throughput: 80 Gbps, Switching capacity: 160 Gbps
MAC Address Table Size: 16K entries
Jumbo Frame Support: 12KB
Features: Auto-negotiation, DHCP client, DSCP based CoS, Firmware upgradable, Flow control, IGMP snooping v2, IPv4 support, Jumbo Frames support, LACP support, Layer 2 switching, Loop protection, Ping detect, Port configuration, Port isolation, Port mirroring, Port statistics counter, Port-based QoS, Qfinder Pro, Rate limit, Reset button, SNTP support, ToS, VLAN Tagging, Web-based management
Connectivity
Ports: 8
Port Quantity: 2
Port Type: 10 Gigabit SFP+
Ports (2nd) Quantity: 8
Ports Type (2nd): 100/1000/2.5G/5G/10GBase-T
Interface Provided: 1 x console RJ-45, 2 x 10GBase-T SFP+, 8 x 100/1000/2.5G/5G/10G RJ-45
Power
Device Type: External power adapter
Required Voltage: DC 12 volt
Electric Current Required: 3 A
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Fan, Link/activity, Loop, Power, Speed
Built-in Devices: System fan
Dimensions and Weight
Height: 1.7 inch
Width: 8.3 inch
Depth: 6.3 inch
Weight: 2.84 lbs
Included Items
Included Accessories: Anchors, Foot pad set, Power adapter, Rack mount kit, Screw
Cables: Power cable
Certifications and Listing
Compliant Standards: BSMI, Class A, FCC, IC, KC, LVD, RCM, UKCA, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
