Product Information

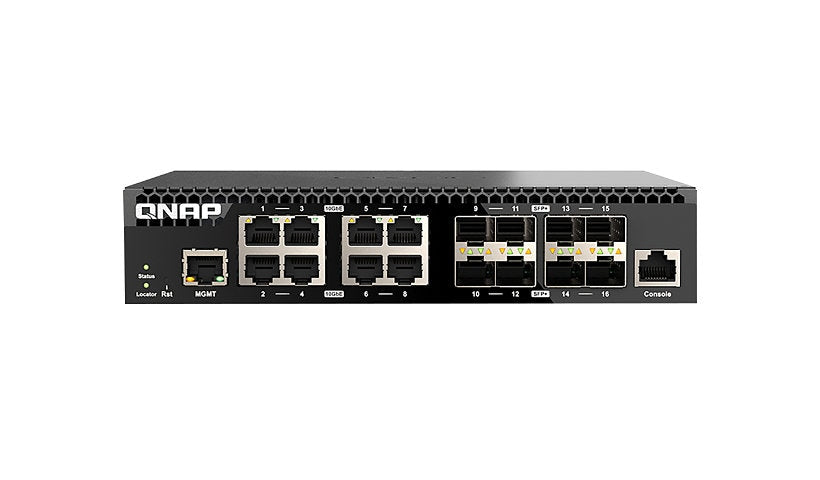

QNAP's QSW-M3216R-8S8T is a Layer 2 web managed rack switch with eight 10G SFP+ fiber ports and eight multi-gigabit RJ-45 ports up to 10G. It offers 320 Gbps of switching capacity, VLAN, QoS, LACP and IGMP snooping, and supports online firmware updates.
Key Features
- 8 x 10G SFP+ ports
- 8 x 100M/1G/2.5G/5G/10G RJ-45 ports
- 320 Gbps switching capacity
- Layer 2 web managed, RSTP, LACP
- Online firmware update
- Rack mount, power cord included
Product Information
Brand: QNAP
Manufacturer: QNAP
Product Line: QNAP
Model: QSW-M3216R-8S8T
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Performance: Non-blocking switching throughput: 160 Gbps, Switching capacity: 320 Gbps
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9KB
Features: 2 fans, Access Control List (ACL) support, DHCP client, DNS client, DSCP based QoS, IGMP snooping, LACP support, Layer 2 switching, LLDP support, Port-based QoS, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Reset button, SNTP client, Type of Service (ToS), VLAN support, Web-based management
Connectivity
Ports: 16
Port Quantity: 8
Port Type: 100/1000/2.5G/5G/10GBase-T
Ports (2nd) Quantity: 8
Ports Type (2nd): 10Gb Ethernet SFP+
Interface Provided: 1 x console RJ-45, 1 x management (Gigabit LAN) RJ-45, 8 x 10Gbit LAN RJ-45, 8 x 10Gbit LAN SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Status Indicators: Link/activity/speed, Power, Status
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 8.1 inch
Depth: 7.9 inch
Weight: 3.35 lbs
Included Items
Included Accessories: Power cord
Certifications and Listing
Compliant Standards: BSMI, Class A, FCC, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
