Product Information

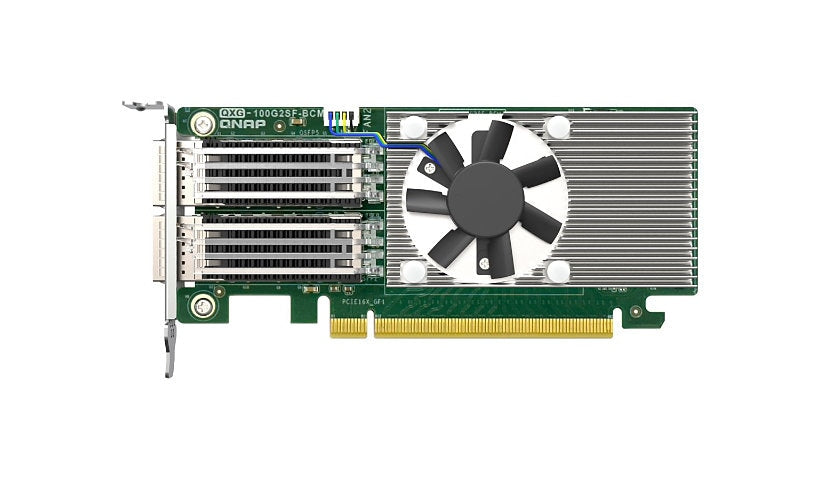

The QNAP QXG-100G2SF-BCM is a dual port 100 Gigabit QSFP28 network card on a low profile PCIe 4.0 x16 interface, built on the Broadcom BCM57508 controller. Each port supports speeds from 1 up to 100 Gb Ethernet, with RoCE and iSER, SR-IOV, a built in hardware crypto accelerator, link aggregation, VXLAN and GENEVE offloads, and PFC and ETS for lossless traffic. It includes full height and low profile brackets.
Key Features
- 2 x 100GbE QSFP28 ports
- Broadcom BCM57508
- PCIe 4.0 x16
- Hardware crypto accelerator
- RoCE and SR-IOV
- Low profile, both brackets
Product Information
Brand: QNAP
Manufacturer: QNAP
Product Line: QNAP
Model: QXG-100G2SF-BCM
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet
Data Transfer Rate: 100 GBps
Operating System Required: Windows 11
Features: Built-in hardware crypto accelerator, Energy-Efficient Ethernet (EEE), Enhanced transmission selection (ETS), GENEVE support, iSCSI Extensions over RDMA (iSER), Link Aggregation, Priority-Based Flow Control (PFC), RDMA over Converged Ethernet (RoCE), Single Root I/O Virtualization (SR-IOV), Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging
Connectivity
PCI Specification Revision: PCIe 3.0, PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 100Gb Ethernet - QSFP28
Network & Adapter Ports: 100 Gigabit QSFP28
Host Interface: PCI Express 4.0 x16
Memory and Processor
Processor Brand: Broadcom
Processor Number: BCM57508
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Width: 6.2 inch
Included Items
Included Accessories: Full-height bracket, Low-profile bracket
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ap, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bs, IEEE 802.3by
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
