Product Information

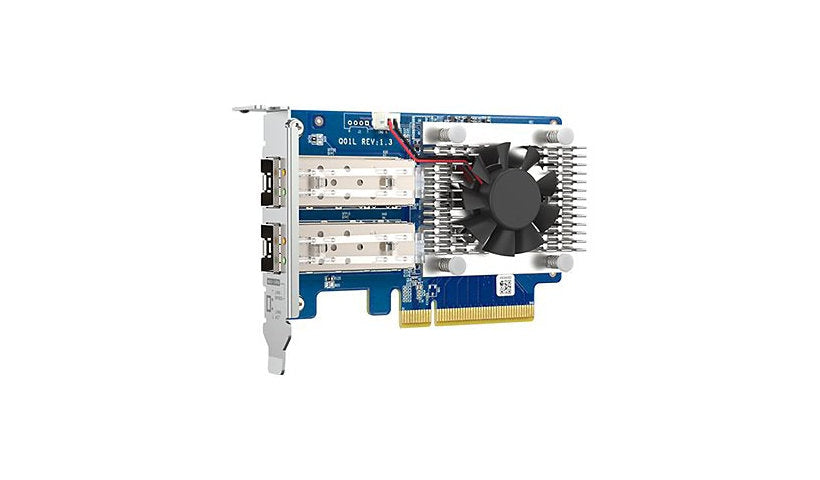

The QNAP QXG-10G2SF-NXE is a dual port SFP+ network card on a PCIe 3.0 x8 interface, built on the Broadcom BCM57412 controller. Each port supports 1 or 10 Gigabit Ethernet, with link aggregation, VLANs, SR-IOV and iSCSI Extensions for RDMA (iSER). It is low profile and ships with full height, low profile and specialized brackets. It supports QTS and QuTS hero 5.2.1 or later, Windows 11, Windows Server 2022 and Ubuntu 24.04.
Key Features
- 2 x 10GbE SFP+ ports
- Broadcom BCM57412
- PCIe 3.0 x8
- SR-IOV and iSER
- Link aggregation, VLAN
- Three brackets included
Product Information
Brand: QNAP
Manufacturer: QNAP
Product Line: QNAP
Model: QXG-10G2SF-NXE
Product Type: Expansion module
Packaged Quantity: 1
Color Category: Blue, Silver
Network and Communication
Connectivity Technology: Wired
Data Transfer Rate: 10 GBps
Operating System Required: Microsoft Windows Server 2022, QNAP QTS 5.2.1 or later, QNAP QuTS hero 5.2.1 or later, Ubuntu 24.04, Windows 11
Features: Auto Negotiation, Full height, iSCSI Extensions over RDMA (iSER), Link Aggregation, Single Root I/O Virtualization (SR-IOV), VLAN support
Connectivity
PCI Specification Revision: PCIe 3.0, PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 10 Gigabit Ethernet - SFP+
Network & Adapter Ports: Gigabit Ethernet / 10 Gigabit SFP+
Host Interface: PCI Express 3.0 x8
Memory and Processor
Processor Brand: Broadcom
Processor Number: BCM57412
Physical Characteristics
Form Factor: Plug-In Module
Low Profile: Low profile
Status Indicators: Port status
Dimensions and Weight
Height: 0.7 inch
Width: 2.7 inch
Length: 4.3 inch
Included Items
Included Accessories: Full-height bracket, Low-profile bracket, Specialized bracket
Cable Length: 4.3 inch
Certifications and Listing
Compliant Standards: IEEE 802.1p, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
