Product Information

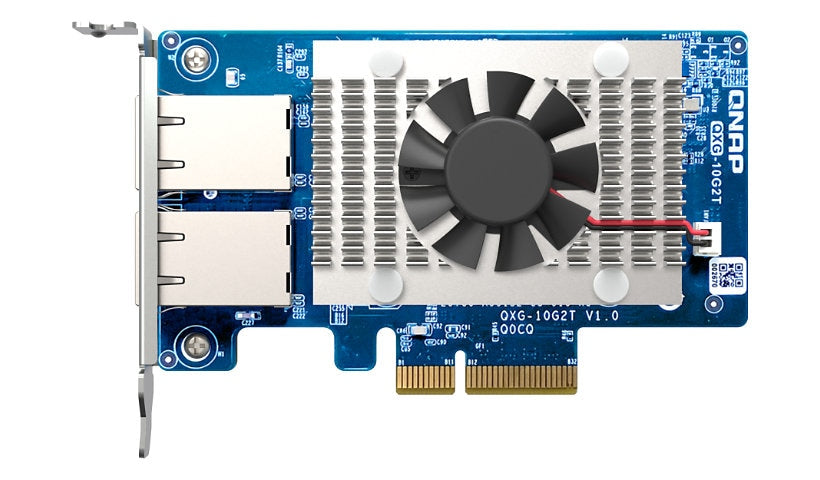

The QNAP QXG-10G2T is a dual port 10GBase-T network card on a low profile PCIe 3.0 x4 interface, built on the Marvell AQtion AQC107 controller. Each RJ-45 port runs at 10G, 5G, 2.5G, 1G or 100M, which suits teams sharing data at once and photo or video work with large files. It has a cooling fan and LED indicators, and ships with a full height bracket and a QNAP NAS bracket. It supports QTS 5.0.1 or later, Windows 10 and 11 and Linux kernel 3.10 or later, and the listing names the QNAP QGD-1600.
Key Features
- 2 x 10GBase-T RJ-45 ports
- Marvell AQtion AQC107
- PCIe 3.0 x4
- Five speeds, 100M to 10G
- Cooling fan, LEDs
- Works in NAS and PCs
Product Information
Brand: QNAP
Manufacturer: QNAP
Product Line: QNAP
Model: QXG-10G2T
Product Type: Network adapter
Compatibility Specs: QNAP QGD-1600
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T
Data Transfer Rate: 10 GBps
Operating System Required: Linux Kernel 3.10 or later, QNAP QTS 5.0.1 or later, Windows 10 (32/64 bits), Windows 11
Features: 1 fan
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 2
Interface Provided: 2 x 10GBase-T - RJ-45
Network & Adapter Ports: 100M/1G/2.5G/5G/10 Gigabit Ethernet
Host Interface: PCI Express 3.0 x4
Memory and Processor
Processor Brand: Marvell
Processor Type: AQtion
Processor Number: AQC107
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Status Indicators: Link/activity, Link/speed
Included Items
Included Accessories: Full-height bracket, QNAP NAS bracket
Certifications and Listing
Compliant Standards: IEEE 802.3an, IEEE 802.3bz
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
