Product Information

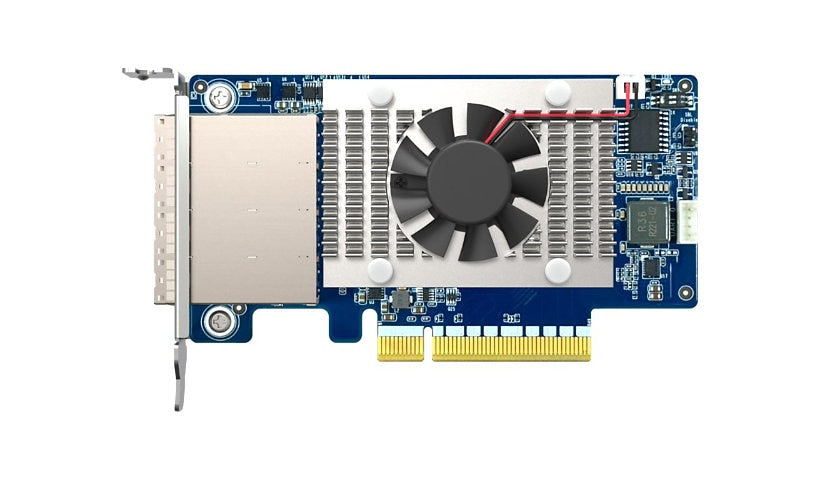

The QNAP QXP-1630S-3816 is a SAS/SATA 12Gb/s expansion card on a PCIe 4.0 x8 interface, built on the Broadcom SAS3816 controller, for connecting QNAP JBOD enclosures with up to 16 drives. It has four SFF-8644 connectors, runs on QTS 5.x or later, and ships with full height and low profile brackets. The description mentions 8 channels, while the spec lists 16 devices.
Key Features
- Broadcom SAS3816
- SAS/SATA 12Gb/s
- Up to 16 drives (JBOD)
- 4 x SFF-8644 connectors
- PCIe 4.0 x8
- Both brackets included
Product Information
Brand: QNAP
Manufacturer: QNAP
Product Line: QNAP
Model: QXP-1630S-3816
Product Type: Storage controller
Packaged Quantity: 1
Color Category: Blue
Network and Communication
Data Transfer Rate: 12 Gbit/s
Operating System Required: QNAP QTS 5.x or later
Connectivity
Controller Interface: SATA 6Gb/s / SAS 12Gb/s / PCIe
Interface Required Connections: 1 x PCIe 4.0 x8
Host Bus Interface: PCIe 4.0 x8
Interface Provided: 4 x SATA 6Gb/s / SAS 12Gb/s / PCIe - SFF-8644
Power
Power Device Type: None
Memory and Processor
Form Factor (Storage Controller): Plug-in card
Max Storage Devices: 16
RAID Levels: JBOD
Processor Brand: Broadcom
Processor Number: SAS3816
Physical Characteristics
Low Profile: Low profile
Included Items
Included Accessories: Full-profile bracket, Low-profile bracket
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
