Product Information

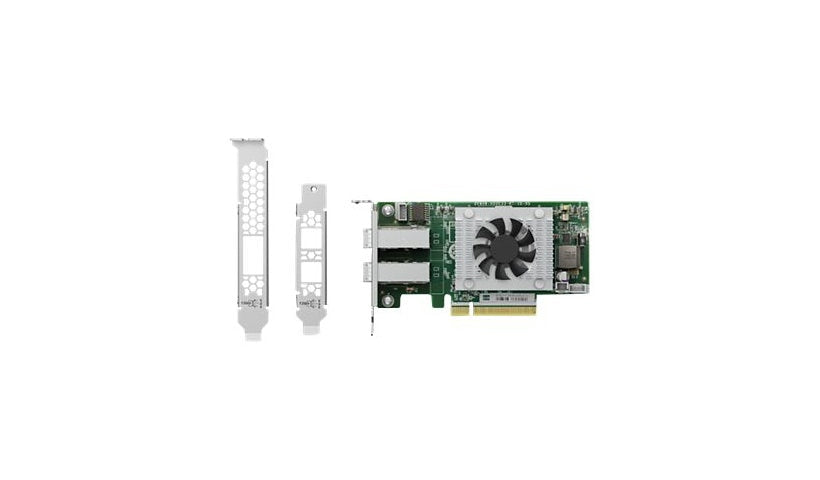

The QNAP QXP-820S-B3408 is a SAS/SATA 12Gb/s expansion card on a PCIe 3.0 x8 interface, built on the Broadcom SAS3408 controller, for hard drives and SSDs in QNAP expansion enclosures. It has two Mini SAS HD (SFF-8644) connectors, a low profile design, and ships with full height and desktop brackets.
Key Features
- Broadcom SAS3408
- SAS/SATA 12Gb/s
- 2 x SFF-8644 connectors
- PCIe 3.0 x8
- HDD and SSD support
- Low profile design
Product Information
Brand: QNAP
Manufacturer: QNAP
Product Line: QNAP
Model: QXP-820S-B3408
Product Type: Storage controller
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Data Transfer Rate: 12 Gbit/s
Connectivity
Controller Interface: SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
Interface Required Connections: 1 x PCIe 3.0 x8
Host Bus Interface: PCIe 3.0 x8
Interface Provided: 2 x SATA 6Gb/s / SAS 12Gb/s - Mini SAS HD (SFF-8644)
Power
Power Device Type: None
Memory and Processor
Form Factor (Storage Controller): Plug-in card
Processor Brand: Broadcom
Processor Number: SAS3408
Physical Characteristics
Low Profile: Low profile
Supported Devices: Hard Drive, Solid State Drive
Included Items
Included Accessories: Desktop bracket, Full-height bracket
