Product Information

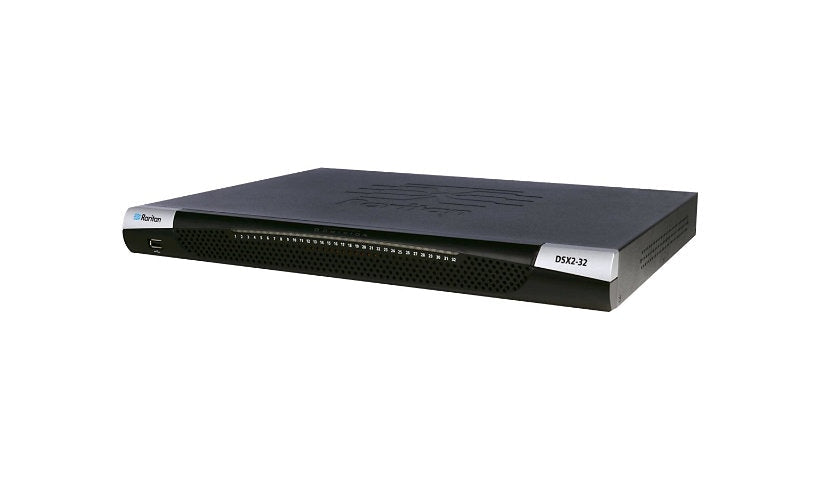

The Raritan Dominion SX II DSX2-32 is a 32 port serial over IP console server for secure access to network gear, servers, PDUs and telecom devices from anywhere. It has thirty-two RJ-45 serial ports, two Ethernet ports, an RJ-45 console, DVI-D local port, four USB and a mini USB. It supports up to 200 simultaneous connections, SSL, SSH, LDAP, RADIUS and TACACS+, IPv4 and IPv6, and web, SNMP and Telnet management. Dual supplies draw about 23 W in 1U, with a rack kit and rubber feet included.
Key Features
- 32 RJ-45 serial ports
- Up to 200 connections
- SSL, SSH, LDAP, RADIUS
- Local DVI-D and USB
- Dual power supplies
- 1U, rack kit included
Product Information
Brand: Raritan
Manufacturer: Raritan
Product Line: Raritan Dominion SX
Model: DSX2-32
Product Type: Console server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, PPP, Serial
Network Standard: TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS, SNMP, SSH, Telnet
Authentication Method: LDAP, PAP, RADIUS, Secure Shell (SSH), TACACS+
Encryption: SSL
Capacity: Simultaneous connections: 200
Features: IPv4 support, IPv6 support, Reset button
Connectivity
Ports: 32
Interface Provided: 1 x console - RJ-45, 1 x DVI-D, 1 x mini-USB, 2 x 100Base-TX - RJ-45, 32 x serial - RJ-45, 4 x USB - Type A
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 23 watt
Power Supplies Installed: 2
Memory and Processor
Clock Speed: 1 GHZ
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 20 - 85% (non-condensing)
Physical Characteristics
Form Factor: External
Height (Rack Units): 1
Status Indicators: Power, Status
Included Items
Included Accessories: 4 rubber feet, Rack mount kit
Certifications and Listing
Compliant Standards: cULus, FCC Part 15 A, UL
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
