Product Information

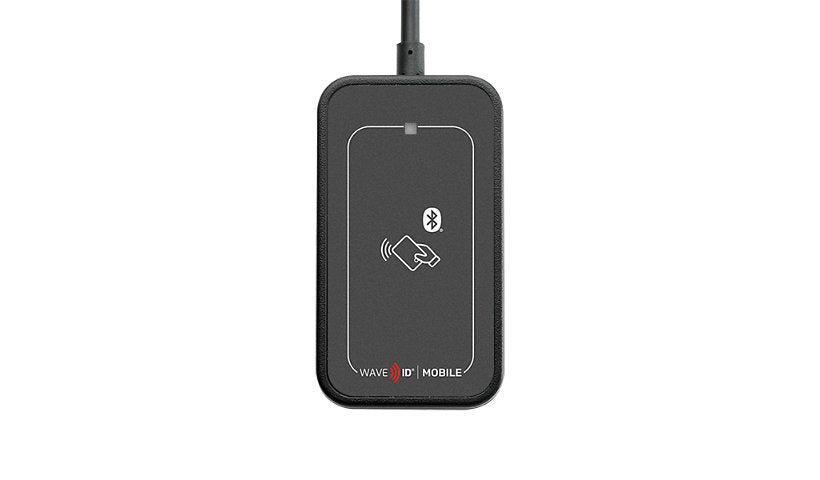

The RF IDeas WAVE ID Mobile Mini combines a dual frequency card reader for 125/132 kHz proximity and 13.56 MHz contactless cards with a Bluetooth low energy module for mobile credentials, all on one USB port. It types badge data as keystrokes and has a 6 inch cable and adjustable beeper. It carries a 1 year limited warranty.
Key Features
- 125 / 132 kHz and 13.56 MHz
- Bluetooth 5.3 mobile credentials
- Keystroke keyboard emulation
- USB powered, 6 inch cable
- Adjustable beeper, LED
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Mobile Mini
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Linux, Microsoft Windows XP / 7 / 8.1 / 10
Software Type: Software Development Kit (SDK)
Connectivity
Interface Type: Bluetooth 5.3, USB
Input Adapter Type: RF proximity reader / SMART card reader
Interface Required Connections: 1 x USB
Power
Frequency: 125 KHz / 132 KHz / 13.56 MHz
Technical Information
Device Features: Adjustable beeper, Dual frequency, USB powered
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Touchscreen: No
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): External
Dimensions and Weight
Height: 0.5 inch
Width: 1.7 inch
Depth: 2.9 inch
Weight: 3.03 ounce
Included Items
Cables: 1 x USB cable - 6 in
Certifications and Listing
Compliant Standards: FCC, IC, RCM, REACH, RoHS, UL
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
