Product Information

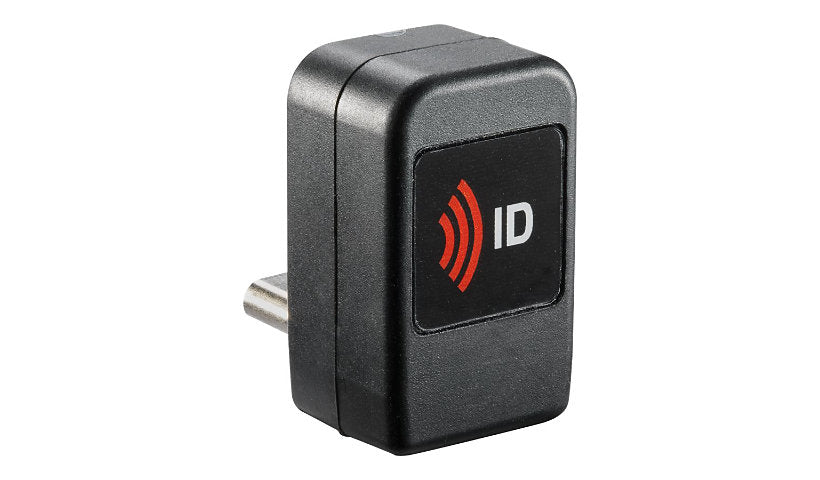

The RF IDeas WAVE ID Nano in USB-C form reads 125 kHz HID Prox cards and sends the ID as keystrokes from an ultra compact vertical body. The description notes the USB-C version is built to cope with extreme altitude, heat, cold, moisture, dust, shock, vibration and freeze/thaw, suiting first responders and military users.
Key Features
- 125 kHz HID Prox
- USB-C, keystroke output
- Ultra compact vertical form
- USB powered, LED
- Rugged per description
- Black
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Nano
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Android, Apple MacOS, Microsoft Windows XP / 7 / 8 / 10, Red Hat Linux, Ubuntu
Connectivity
Interface Type: USB-C
Input Adapter Type: RF proximity reader
Interface Required Connections: 1 x USB-C - 24 pin USB-C
Power
Frequency: 125 KHz
Technical Information
Device Features: HID Prox technology, Keystroke data output, LED indicator, USB powered, Vertical form factor
Touchscreen: No
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): External
Dimensions and Weight
Height: 0.8 inch
Width: 0.4 inch
Depth: 0.5 inch
Weight: 0.14 ounce
Certifications and Listing
Compliant Standards: FCC, IC, MIL-STD-810, RCM, REACH, RoHS, UL
