Product Information

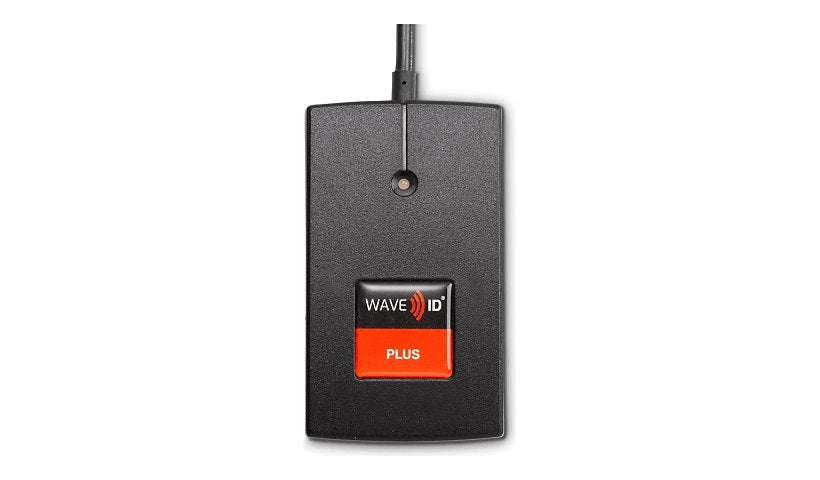

The rf IDEAS WAVE ID Plus Keystroke is a surface mount USB reader for 125 kHz and 13.56 MHz cards, including AWID, Casi-Rusco, HID, HiTag, Indala and MIFARE CSN, with a 2.5 to 7.6 cm read range. It types card data so staff skip manual entry, has an integrated USB cable, beeper and LED, and works with Windows, macOS, Linux and Android. 1 year limited warranty.
Key Features
- 125 kHz and 13.56 MHz
- AWID, HID, Indala, MIFARE CSN
- 2.5 to 7.6 cm read range
- Keystroke output
- Surface mount, integrated cable
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Plus Keystroke Black Surface Mount Reader
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Android, Apple MacOS, Linux, Microsoft Windows 7 / 8 / 10
Connectivity
Interface Type: USB
Input Adapter Type: RF proximity reader
Interface Required Connections: 1 x USB - 4 pin USB Type A
Power
Frequency: 125 KHz / 13.56 MHz
Technical Information
Device Features: 2.5 - 7.6 cm read range, AWID cards compatible, Casi-Rusco cards compatible, HID cards compatible, HiTag cards compatible, Indala cards compatible, MiFare CSN cards compatible, Surface mountable, USB powered
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Touchscreen: No
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): External
Dimensions and Weight
Height: 0.7 inch
Width: 2.1 inch
Depth: 3.6 inch
Weight: 4 ounce
Included Items
Cables: 1 x USB cable - integrated
Certifications and Listing
Compliant Standards: C-Tick, FCC, IC, IP67, Plug and Play, RCM, REACH, RoHS, UL
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
