Product Information

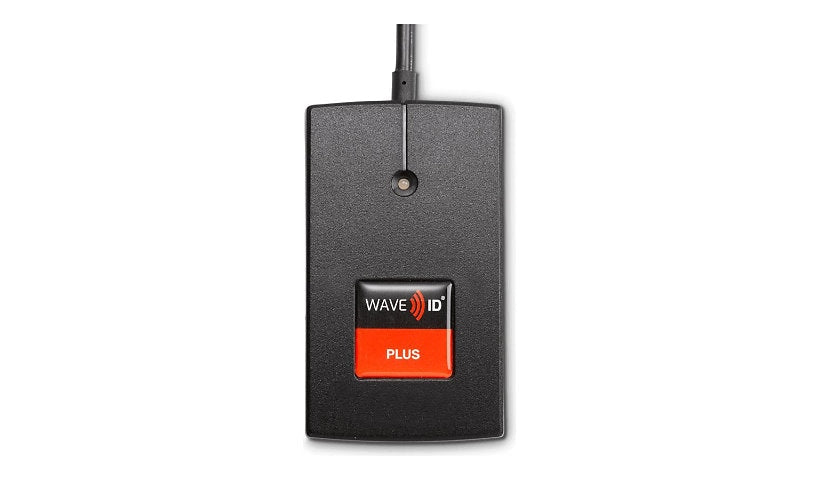

The rf IDEAS WAVE ID Plus Keystroke V2 RDR-80031BK0 is a desktop reader for 125 kHz, 132 kHz and 13.56 MHz cards including iCLASS Seos, with auto tuning and an adjustable beeper. It is USB powered through a 6 ft integrated USB-A cable, signals with beeper and LED and works with Windows, macOS, Linux and Android. 1 year limited warranty.
Key Features
- 125, 132 kHz and 13.56 MHz
- iCLASS Seos support
- Auto tuning
- Adjustable beeper, LED
- 6 ft integrated USB-A cable
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Plus Keystroke V2
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Android, Apple MacOS, Linux, Microsoft Windows XP / 7 / 8 / 10
Connectivity
Interface Type: USB-A
Input Adapter Type: RF proximity reader
Interface Provided: 1 x USB-A
Power
Frequency: 125 KHz / 132 KHz / 13.56 MHz
Power Consumption Operational: 70 mAH
Technical Information
Device Features: Adjustable beeper, Auto-tuning, iClass SEOS cards compatible, USB powered
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Touchscreen: No
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Input Device): Desktop
Dimensions and Weight
Height: 3.5 inch
Width: 2 inch
Depth: 0.7 inch
Weight: 4 ounce
Included Items
Cables: 1 x USB cable - integrated - 6 ft
Certifications and Listing
Compliant Standards: FCC, IC, Plug and Play, RCM, REACH, RoHS, UL
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
