Product Information

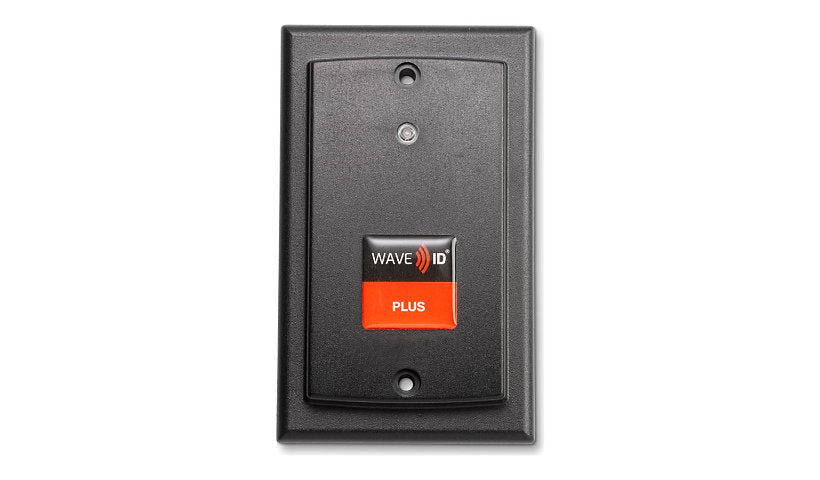

This RF IDeas WAVE ID Plus Keystroke V2 uses USB with virtual COM software, reading 125 kHz proximity and 13.56 MHz contactless cards. It surface mounts, stores four card configurations, auto-tunes and has a four level beeper. It carries a 1 year limited warranty.
Key Features
- 125 kHz and 13.56 MHz
- USB with virtual COM software
- 4 card configurations
- Auto-tuning, 4 level beeper
- Surface mount, black
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Plus Keystroke V2
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Android, Apple MacOS, Microsoft Windows XP / 7 / 8 / 10, Red Hat Linux, Ubuntu
Software Type: Virtual COM software
Connectivity
Interface Type: USB
Input Adapter Type: RF proximity reader / SMART card reader
Power
Frequency: 125 KHz / 13.56 MHz
Electric Current Required: 150 mA (peak), 70 mA (typical)
Technical Information
Device Features: 4 card configurations, Adjustable beeper volume (off, low, medium, high), Auto-tuning, Keystroke data output
OK Notification: Beeper
SMART Card Reader Type: Contactless
Touchscreen: No
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): Surface-mountable
Dimensions and Weight
Height: 0.4 inch
Width: 2.5 inch
Depth: 4.3 inch
Weight: 2.6 ounce
Certifications and Listing
Compliant Standards: ANATEL, C-Tick, CITC, FCC, IC, iDA, IFETEL, KC, REACH, RoHS, SRRC, UL, VCCI
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
