Product Information

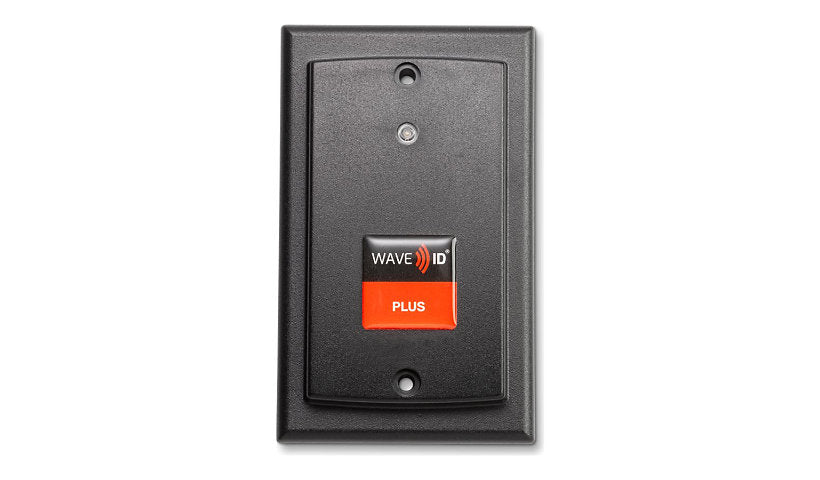

This RF IDeas WAVE ID Plus Keystroke V2 is a wall mountable reader with an RS-232 serial interface, reading 125 kHz proximity and 13.56 MHz contactless cards including iCLASS SE. It holds four card configurations, auto-tunes and gives beeper and LED feedback. It carries a 1 year limited warranty.
Key Features
- 125 kHz and 13.56 MHz, iCLASS SE
- RS-232 serial
- Wall mountable
- 4 card configurations, auto-tuning
- Beeper and LED, black
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Plus Keystroke V2
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Android, Apple MacOS, Microsoft Windows XP / 7 / 8 / 10, Red Hat Linux, Ubuntu
Connectivity
Interface Type: Serial RS-232
Input Adapter Type: RF proximity reader / SMART card reader
Interface Required Connections: 1 x serial
Power
Frequency: 125 KHz / 13.56 MHz
Technical Information
Device Features: 4 card configurations, Adjustable beeper, Auto-tuning, iCLASS SE technology
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): Wall mountable
Dimensions and Weight
Height: 0.4 inch
Width: 2.5 inch
Depth: 4.3 inch
Weight: 2.6 ounce
Certifications and Listing
Compliant Standards: ANATEL, C-Tick, CITC, FCC, IC, iDA, IFETEL, IP67, KC, REACH, RoHS, SRRC, UL, VCCI
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
