Product Information

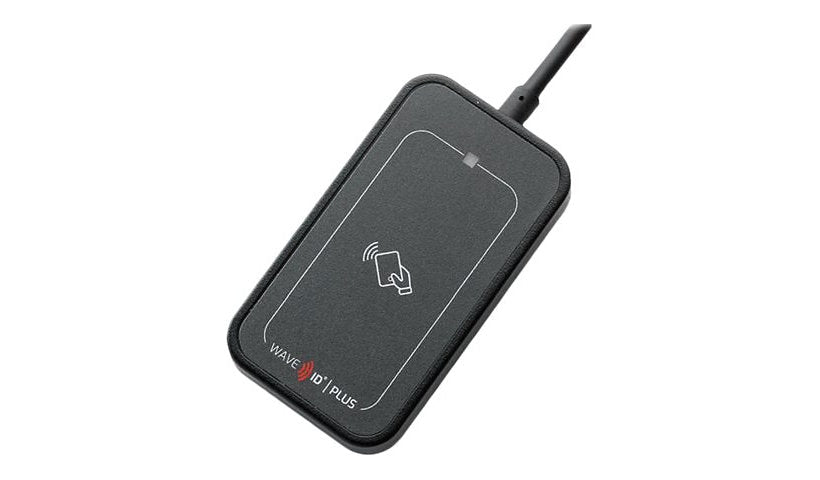

The rf IDEAS WAVE ID Plus Mini RDR-80531BKU is a small desktop reader for 125 kHz, 132 kHz and 13.56 MHz proximity and contactless cards, sending card data as keystrokes. It is USB powered through a 6 ft integrated cable with beeper and LED, and supports Windows, macOS, Linux and Android.
Key Features
- 125, 132 kHz and 13.56 MHz
- Keystroke data output
- Compact desktop design
- 6 ft integrated USB cable
- Beeper and LED
- Black
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Plus Mini
Packaged Quantity: 1
Color: Black
Color Category: Black, Gray
Network and Communication
Operating System Required: Android, Apple MacOS, Microsoft Windows XP / 7 / 8 / 10, Red Hat Linux, Ubuntu
Connectivity
Interface Type: USB
Input Adapter Type: RF proximity reader / SMART card reader
Interface Required Connections: 1 x USB - 4 pin USB Type A
Power
Frequency: 125 KHz / 132 KHz / 13.56 MHz
Technical Information
Device Features: Keystroke data output, USB powered
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Touchscreen: No
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): External
Dimensions and Weight
Height: 0.5 inch
Width: 1.7 inch
Depth: 2.9 inch
Weight: 2.54 ounce
Included Items
Cables: 1 x USB cable - integrated - 6 ft
Certifications and Listing
Compliant Standards: FCC, IC, MIFARE, RCM, REACH, RoHS, UL
