Product Information

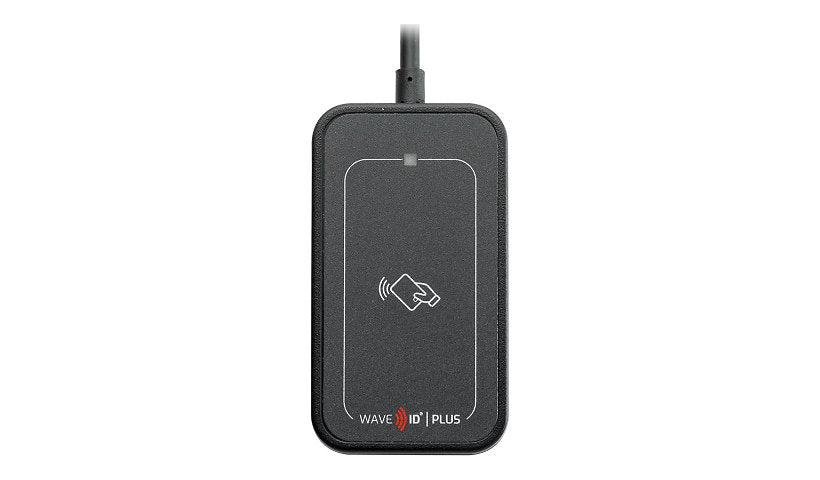

The RF IDeas WAVE ID Plus Mini is a small desktop reader for 13.56 MHz contactless credentials including iCLASS SE and Seos, with USB and RS-232 interface support. It holds four card configurations, auto-tunes and is USB powered at 5 V with beeper and LED. It carries a 1 year limited warranty.
Key Features
- 13.56 MHz, iCLASS SE and Seos
- USB / RS-232
- 4 card configurations, auto-tuning
- USB powered, 5 V
- Beeper and LED, black with gray inlay
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Manufacturer: RF Ideas
Product Line: rf IDEAS WAVE ID
Model: Plus Mini
Packaged Quantity: 1
Color: Black, Gray inlay
Color Category: Black, Gray
Network and Communication
Operating System Required: Android, Apple MacOS, Microsoft Windows XP / 7 / 8 / 10, Red Hat Linux, Ubuntu
Connectivity
Interface Type: USB / serial RS-232
Input Adapter Type: RF proximity reader / SMART card reader
Interface Required Connections: 1 x USB - 4 pin USB Type A
Power
Required Voltage: 5 volt
Frequency: 13.56 MHz
Electric Current Required: 185 mA (maximum), 65 mA (typical)
Technical Information
Device Features: 4 card configurations, Auto-tuning, iCLASS SE technology, Seos cards compatible, USB powered
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Touchscreen: No
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): Desktop
Dimensions and Weight
Height: 0.5 inch
Width: 1.7 inch
Depth: 2.9 inch
Weight: 2.54 ounce
Certifications and Listing
Compliant Standards: FCC, IC, Plug and Play, RCM, REACH, RoHS, UL
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
