Product Information

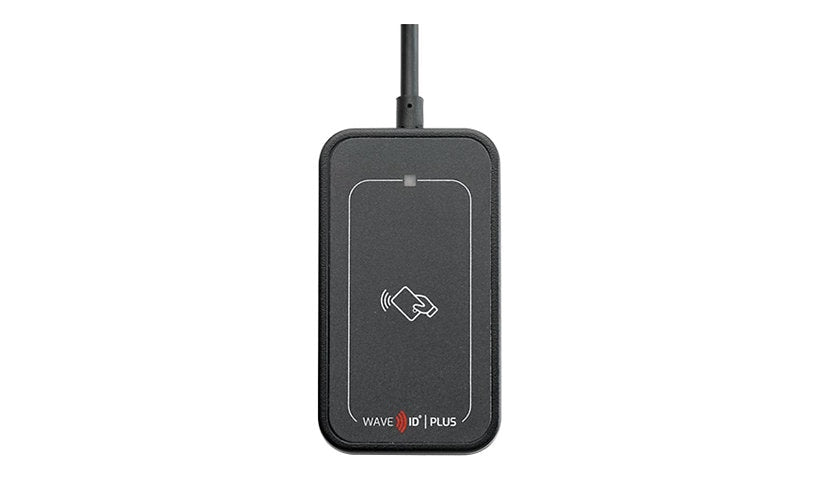

The rf IDEAS WAVE ID Plus Mini in this USB-C model is a small desktop reader for 125 kHz, 132 kHz and 13.56 MHz cards, covering HID Prox, AWID, Casi-Rusco, Cotag, HITAG, iCLASS SE/Seos and many more. It holds four card configurations, auto-tunes and is USB powered with a four level beeper. It carries a 1 year limited warranty.
Key Features
- 125, 132 kHz and 13.56 MHz
- HID Prox, AWID, Casi-Rusco, HITAG, iCLASS SE/Seos
- USB-C, integrated cable
- 4 card configurations, auto-tuning
- Windows 10/11, macOS 12+, Ubuntu, Android 10+
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Manufacturer: RF Ideas
Product Line: rf IDEAS WAVE ID
Model: Plus Mini
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Android 10 or later, Apple macOS Monterey 12 or later, Ubuntu Linux 20.04 or later, Windows 10 / 11 or later
Connectivity
Interface Type: USB-C
Input Adapter Type: RF proximity reader / SMART card reader
Interface Required Connections: 1 x USB - 24 pin USB-C
Power
Required Voltage: 5 volt
Frequency: 125 KHz / 132 KHz / 13.56 MHz
Electric Current Required: 185 mA (maximum), 65 mA (typical)
Technical Information
Device Features: 4 card configurations, Adjustable beeper volume (off, low, medium, high), Auto-tuning, AWID cards compatible, Cardax cards compatible, Casi-Rusco cards compatible, CEPAS cards compatible, Cotag cards compatible, HID Prox technology, HITAG 1 cards compatible, HITAG 2 cards compatible, HITAG S cards compatible, iCLASS cards compatible, iCLASS SE technology, iClass SEOS cards compatible, iCode SLI cards compatible, IDTECK cards compatible, Indala cards compatible, ioProx cards compatible, ISONAS cards compatible, Keri cards compatible, Keystroke data output, MiFare CSN cards compatible, MiFare DESFire EV1 cards compatible, MiFare Plus cards compatible, MiFare Ultralight cards compatible, Nedap cards compatible, Nexwatch cards compatible, NFC smart card compatible, Rosslare PROX Technology, Rubber feet, Seos cards compatible, USB powered
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): Desktop
Dimensions and Weight
Height: 0.7 inch
Width: 2.1 inch
Depth: 3.6 inch
Weight: 4 ounce
Included Items
Cables: 1 x USB-C cable - integrated
Certifications and Listing
Compliant Standards: FCC, IC, ISO 15693, ISO/IEC 14443A/B, MIFARE, Plug and Play, RCM, REACH, RoHS, UL
ENERGY STAR Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
