Product Information

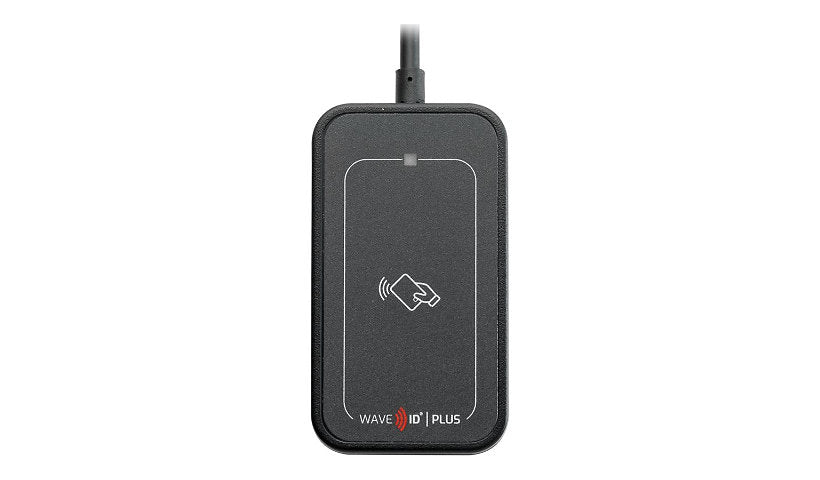

The RF IDeas WAVE ID Plus Mini in this USB-C model reads 125 kHz, 132 kHz and 13.56 MHz cards including iCLASS SE and Seos, with keystroke output and four card configurations. It auto-tunes, is USB powered at 5 V, has rubber feet and a four level beeper, and supports Windows 10/11, macOS, Linux and Android. It carries a 1 year limited warranty.
Key Features
- 125, 132 kHz and 13.56 MHz
- iCLASS SE and Seos
- USB-C, keystroke output
- 4 card configurations, auto-tuning
- Beeper off/low/medium/high, LED
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Plus Mini
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Android, Apple MacOS, Linux, Windows 10 / 11 or later
Connectivity
Interface Type: USB-C
Input Adapter Type: RF proximity reader / SMART card reader
Interface Required Connections: 1 x USB - 24 pin USB-C
Power
Required Voltage: 5 volt
Frequency: 125 KHz / 132 KHz / 13.56 MHz
Electric Current Required: 185 mA (maximum), 65 mA (typical)
Technical Information
Device Features: 4 card configurations, Adjustable beeper volume (off, low, medium, high), Auto-tuning, iCLASS SE technology, Keystroke data output, Rubber feet, Seos cards compatible, USB powered
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Touchscreen: No
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): Desktop
Dimensions and Weight
Height: 0.7 inch
Width: 2.1 inch
Depth: 3.6 inch
Weight: 4 ounce
Certifications and Listing
Compliant Standards: FCC, IC, MIFARE, Plug and Play, RCM, REACH, RoHS, UL
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
