Product Information

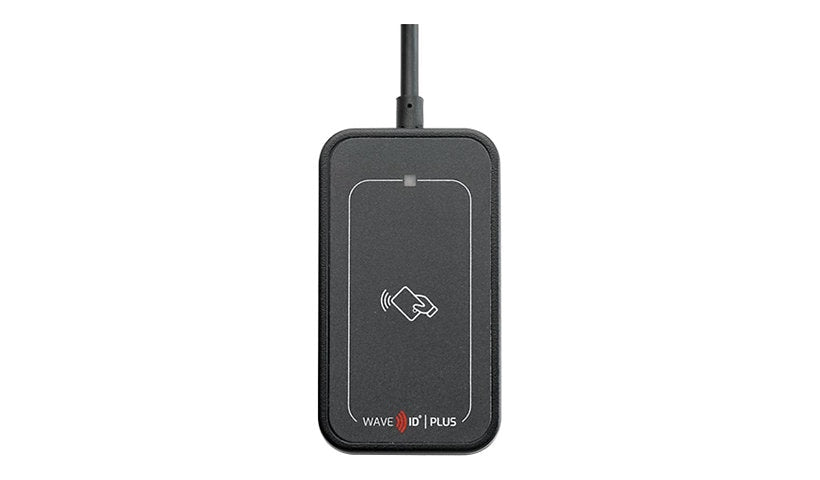

This rf IDEAS WAVE ID Plus Mini uses virtual COM software over USB and reads 125, 132 kHz and 13.56 MHz cards including iCLASS SE/Seos, MIFARE Classic, Plus, Ultralight and DESFire EV1/EV2/EV3. It holds four card configurations, auto-tunes, is USB powered with rubber feet and carries a 1 year limited warranty.
Key Features
- 125, 132 kHz and 13.56 MHz
- iCLASS SE/Seos, MIFARE, DESFire EV1-EV3
- USB virtual COM output
- 4 card configurations, auto-tuning
- USB powered, beeper and LED
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Plus Mini
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Android, Apple MacOS, Microsoft Windows XP / 7 / 8 / 10, Red Hat Linux, Ubuntu
Software Type: Virtual COM software
Connectivity
Interface Type: USB
Input Adapter Type: RF proximity reader / SMART card reader
Interface Required Connections: 1 x USB - 4 pin USB Type A
Power
Required Voltage: 5 volt
Frequency: 125 KHz / 132 KHz / 13.56 MHz
Electric Current Required: 185 mA (maximum), 65 mA (typical)
Technical Information
Device Features: 4 card configurations, Auto-tuning, iCLASS SE cards compatible, iClass SEOS cards compatible, MiFare Classic EV1 cards compatible, MiFare DESFire EV1 cards compatible, MiFare DESFire EV2 cards compatible, MiFare DESFire EV3 cards compatible, MiFare Plus cards compatible, MiFare Ultralight C cards compatible, MiFare Ultralight cards compatible, Rubber feet, USB powered
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Input Device): Desktop
Dimensions and Weight
Height: 3.6 inch
Width: 2.1 inch
Depth: 0.7 inch
Weight: 4 ounce
Included Items
Cables: 1 x USB cable - integrated
Certifications and Listing
Compliant Standards: FCC, IC, Plug and Play, RCM, REACH, RoHS, UL
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
