Product Information

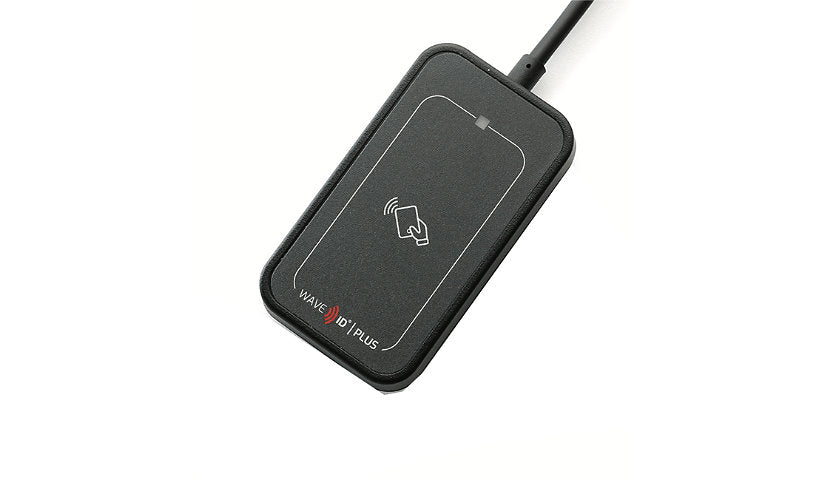

The RF IDeas WAVE ID Plus Mini V3 iCLASS SDK reader supports iCLASS ID, SE and Seos plus 125 and 132 kHz proximity cards, holding four card configurations. It auto-tunes its 13.56 MHz antenna, is USB powered with a 1.3 ft articulated cable, rubber feet and a four level beeper. It carries a 1 year limited warranty.
Key Features
- iCLASS ID, SE and Seos
- 125 kHz, 132 kHz and 13.56 MHz
- 4 card configurations, SDK
- Articulated 1.3 ft USB cable
- Beeper off, low, medium, high
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Plus Mini V3 iClass
Packaged Quantity: 1
Color: Black, Gray inlay
Color Category: Black
Network and Communication
Operating System Required: Android, Apple MacOS, Microsoft Windows XP / 7 / 8 / 10, Red Hat Linux, Ubuntu
Software Type: Software Development Kit (SDK)
Connectivity
Interface Type: USB
Input Adapter Type: RF proximity reader / SMART card reader
Interface Required Connections: 1 x USB
Power
Frequency: 125 KHz / 132 KHz / 13.56 MHz
Technical Information
Device Features: Adjustable beeper volume (off, low, medium, high), Articulated cable, iCLASS SE cards compatible, iClass SEOS cards compatible, Rubber feet, USB powered
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Input Device): External
Dimensions and Weight
Height: 0.5 inch
Width: 1.7 inch
Depth: 2.9 inch
Weight: 2.54 ounce
Included Items
Cables: 1 x USB cable - integrated - 1.3 ft
Certifications and Listing
Compliant Standards: FCC, IC, Plug and Play, RCM, REACH, RoHS, UL
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
