Product Information

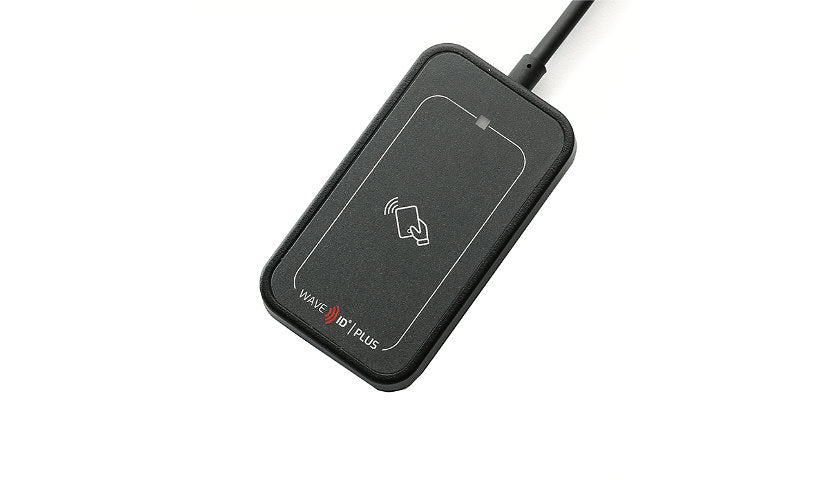

This RF IDeas Mini V3 SDK reader on USB handles almost all proximity and contactless cards worldwide and keeps four card configurations at once. It supports iCLASS ID, SE and Seos, auto-tunes its 13.56 MHz antenna and has an articulated cable, rubber feet and a four level beeper. It carries a 1 year limited warranty.
Key Features
- 13.56 MHz, iCLASS ID, SE and Seos
- 4 card configurations, SDK
- Configuration utility card analyzer
- Articulated cable, rubber feet
- Beeper off/low/medium/high, LED
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Manufacturer: RF Ideas
Product Line: rf IDEAS WAVE ID
Model: Plus Mini V3
Packaged Quantity: 1
Color: Black, Gray inlay
Color Category: Black, Gray
Network and Communication
Operating System Required: Android, Apple MacOS, Microsoft Windows XP / 7 / 8 / 10, Red Hat Linux, Ubuntu
Software Type: Software Development Kit (SDK)
Connectivity
Interface Type: USB
Input Adapter Type: RF proximity reader / SMART card reader
Power
Frequency: 13.56 MHz
Electric Current Required: 185 mA (maximum), 65 mA (typical)
Technical Information
Device Features: 4 card configurations, Adjustable beeper volume (off, low, medium, high), Articulated cable, Auto-tuning, iCLASS SE technology, iClass SEOS cards compatible, LED indicator, Rubber feet
SMART Card Reader Type: Contactless
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): External
Dimensions and Weight
Height: 0.5 inch
Width: 1.7 inch
Depth: 2.9 inch
Weight: 2.54 ounce
Certifications and Listing
Compliant Standards: FCC, IC, Plug and Play, RCM, REACH, RoHS, UL
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
