Product Information

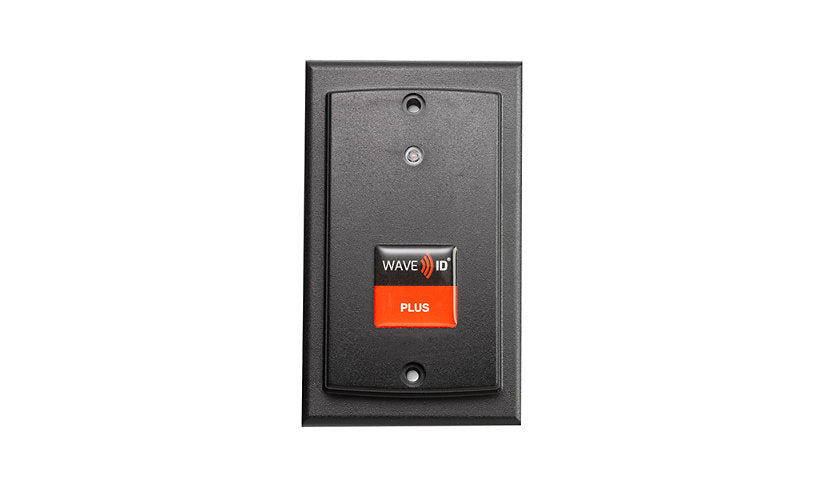

The rf IDEAS WAVE ID Plus SDK V2 is a surface mountable dual frequency 125 kHz and 13.56 MHz USB reader for HID, iCLASS SE and Seos cards, with 4 card configurations and a universal SDK, ideal for enrollment and single sign on integration. It has an adjustable beeper, LED, two mounting screws and works from -30 to 65 C. 1 year limited warranty.
Key Features
- 125 kHz and 13.56 MHz
- HID, iCLASS SE, Seos
- 4 card configurations
- Universal SDK
- Surface mount, screws included
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Plus SDK V2
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Apple macOS Monterey, Linux, Microsoft Windows 11, Windows 10 (32/64 bits)
Software Type: Software Development Kit (SDK)
Connectivity
Interface Type: USB
Input Adapter Type: RF proximity reader / SMART card reader
Interface Required Connections: 1 x USB - 4 pin USB Type A
Power
Frequency: 125 KHz / 13.56 MHz
Technical Information
Device Features: 4 card configurations, Adjustable beeper volume (off, low, medium, high), Dual frequency, HID cards compatible, iCLASS SE technology, iClass SEOS cards compatible, USB powered
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Touchscreen: No
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): Surface-mountable
Dimensions and Weight
Height: 0.6 inch
Width: 2.7 inch
Depth: 4.5 inch
Weight: 2.5 ounce
Included Items
Input Adapter Accessories Included: 2 x mounting screws
Certifications and Listing
Compliant Standards: FCC, IC, IP67, Plug and Play, RCM, REACH, RoHS, UL
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
