Product Information

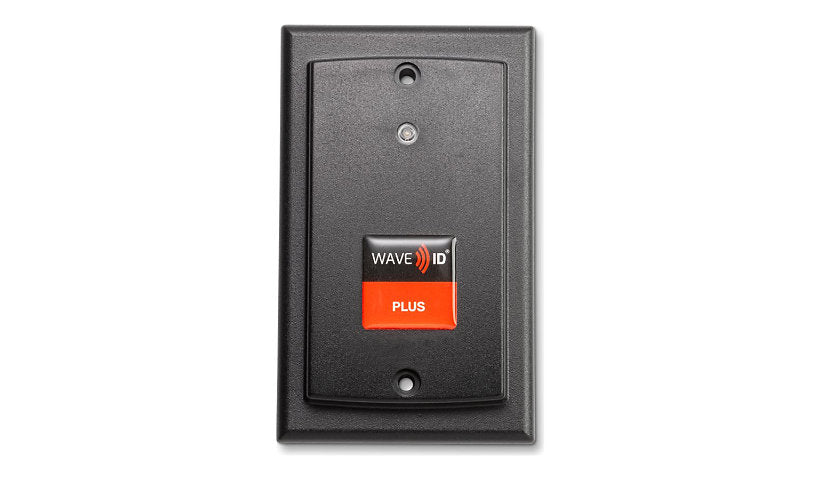

The rf IDEAS WAVE ID Plus RDR-800W1BK5 is a surface mountable USB reader for 125 kHz and 13.56 MHz cards including AWID, DESFire, HID and MIFARE. It comes with an SDK, has an integrated USB cable, is USB powered with beeper and LED and works from -30 to 65 C on Windows 10/11, macOS, Linux and Android. 1 year limited warranty.
Key Features
- 125 kHz and 13.56 MHz
- AWID, DESFire, HID, MIFARE
- SDK version
- Surface mount, integrated cable
- -30 to 65 C
- 1 year limited warranty
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: Plus
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Android, Apple MacOS, Linux, Windows 10 / 11 or later
Software Type: Software Development Kit (SDK)
Connectivity
Interface Type: USB
Input Adapter Type: RF proximity reader
Interface Required Connections: 1 x USB - 4 pin USB Type A
Power
Frequency: 125 KHz / 13.56 MHz
Technical Information
Device Features: AWID cards compatible, DESFire cards compatible, HID cards compatible, MiFare cards compatible, USB powered
OK Notification: Beeper, LED indicator
Touchscreen: No
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): Surface-mountable
Dimensions and Weight
Height: 0.6 inch
Width: 2.8 inch
Depth: 4.5 inch
Weight: 2.5 ounce
Included Items
Cables: 1 x USB cable - integrated
Certifications and Listing
Compliant Standards: IC, IP67, Plug and Play, RCM, REACH, RoHS, UL
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
