Product Information

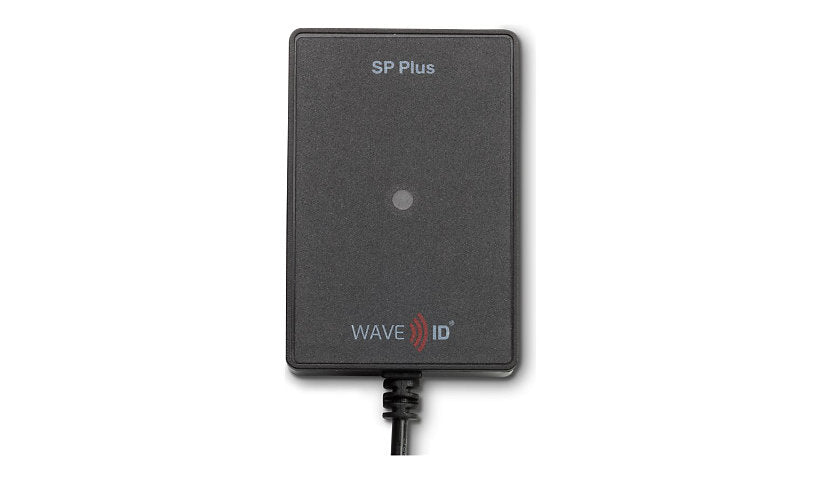

Part RDR-805H1BKU-R is a WAVE ID SP Plus from rf IDEAS, a dual frequency USB reader for 125 kHz, 132 kHz and 13.56 MHz that outputs card data as keystrokes and includes an SDK. It reads HID and iCLASS Seos cards, is USB powered at 70 mA typical, has beeper and LED feedback and works from -30 to 65 C on Windows and Linux.
Key Features
- 125 kHz, 132 kHz, 13.56 MHz
- HID and iCLASS Seos cards
- Keystroke output, SDK
- USB powered, 70 mA typical
- Beeper and LED
- -30 to 65 C, black
Product Information
Brand: rf IDEAS
Product Line: rf IDEAS WAVE ID
Model: SP Plus
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Operating System Required: Linux, Microsoft Windows XP / 7 / 8.1 / 10
Software Type: Software Development Kit (SDK)
Connectivity
Interface Type: USB
Input Adapter Type: RF proximity reader / SMART card reader
Interface Required Connections: 1 x USB - 4 pin USB Type A
Power
Frequency: 125 KHz / 132 KHz / 13.56 MHz
Electric Current Required: 100 mA (maximum), 70 mA (typical)
Technical Information
Device Features: Dual frequency, HID cards compatible, iClass SEOS cards compatible, Keystroke data output, USB powered
OK Notification: Beeper, LED indicator
SMART Card Reader Type: Contactless
Touchscreen: No
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Input Device): External
Dimensions and Weight
Height: 0.6 inch
Width: 2 inch
Depth: 3 inch
Weight: 2.7 ounce
Certifications and Listing
Compliant Standards: FCC, IC, REACH, RoHS, UL
