Product Information

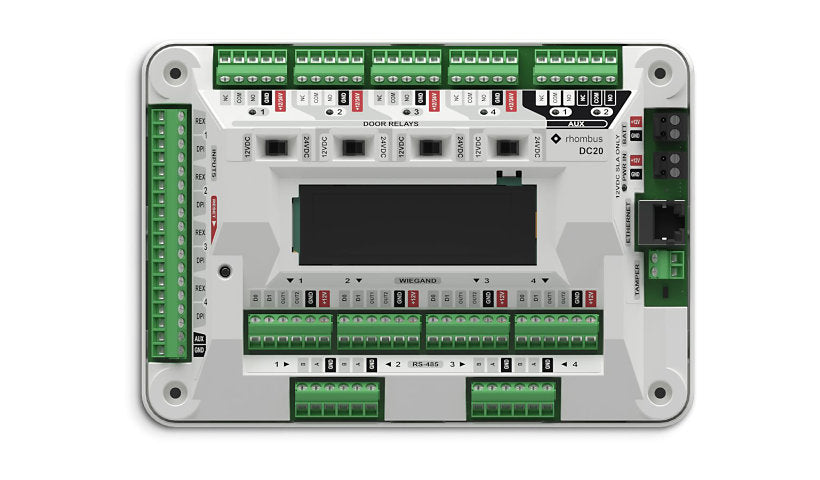

The Rhombus DC20M is an indoor cloud managed door controller with 4 Wiegand and 4 RS-485 ports, 6 relays, 8 door contact inputs, AUX and tamper inputs, plus Ethernet and Bluetooth LE. It has an OLED status display, LED indicators and a reset button and runs on AC 100 to 240 V with optional battery backup (battery not included). It ships with 16 supervision resistors and 4 relay jumpers.
Key Features
- 4 Wiegand, 4 RS-485 ports
- 6 relays, 8 door contacts
- Ethernet and Bluetooth LE
- OLED display, tamper switch
- AC 100 to 240 V, battery optional
- Cloud sync, indoor use
Product Information
Brand: Rhombus
Product Line: Rhombus
Product Type: Door controller
Packaged Quantity: 1
Color Category: White
Network and Communication
Features #2: Cloud synchronization, LED indicators, Reset button, Tamper switch
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, RS-485, Wiegand
Wired Protocol: Serial RS-485/10/100 Ethernet/Wiegand
Wireless LAN: Bluetooth LE
Features: OLED status display
Features: Cloud synchronization, LED indicators, Reset button, Tamper switch
Connectivity
Interfaces: 4 x serial (RS-485), 4 x Wiegand, 6 x relay, 8 x door contact, AUX, LAN, Tamper input
Power
Power Source: Battery (not included), Power adapter
Required Voltage: AC 100-240 volt
Technical Information
Environment: Indoor
Rated Current: 1.3 ampere
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90%
Dimensions and Weight
Height: 5.6 inch
Width: 8.3 inch
Depth: 1.3 inch
Included Items
Included Accessories: 16 x 4.7 kOhm supervision resistor, 4 relay jumper wires
Certifications and Listing
Compliant Standards: FCC Part 15 A, IC, NDAA
