Product Information

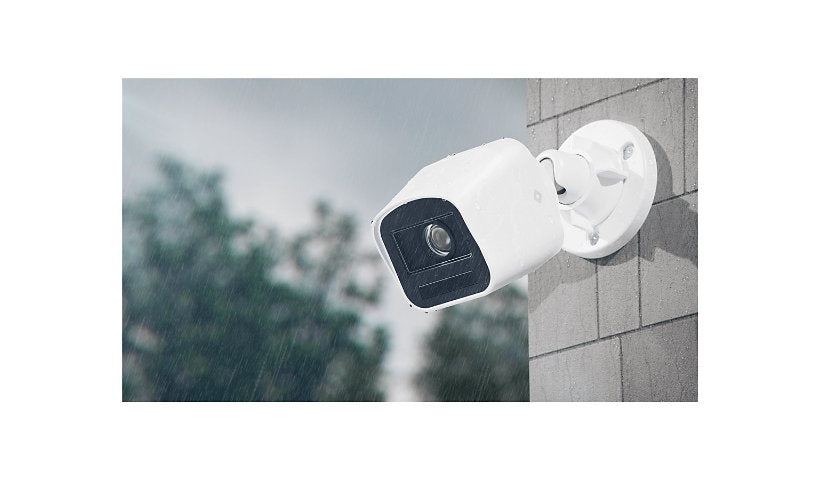

The Rhombus R520 is a 5 MP bullet recording up to 2560 x 1920 with a 3.3 to 9.7 mm motorized lens giving 3x optical zoom. It has IR up to 98 ft, runs on PoE and is weather and impact resistant for indoor or outdoor use from -30 to 55 C. Anchors, screw kit and a waterproof connector are included. TAA compliant.
Key Features
- 5 MP, 2560 x 1920
- 3.3 to 9.7 mm, 3x
- IR up to 98 ft
- Weather, impact resistant
- PoE
- TAA compliant
Product Information
Brand: Rhombus
Manufacturer: Rhombus System
Product Line: Rhombus
Model: R520
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Auto MDI-X
Connectivity
Network Interface: Ethernet 10Base-T/100Base-T
Ports: LAN/power - RJ-45
Memory and Processor
Flash Memory Installed: 256 GB
Technical Information
Angular Field of View (D, Max, Degree): 132
Angular Field of View (H, Max, Degree): 97
Angular Field of View (V, Max, Degree): 70
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 34
Auto Iris Control: P-Iris
Max Focal Length: 9.7 millimetre
Optical Zoom: 3
Digital Zoom: 2
Angular Field of View (H, Min, Degree): 27
Angular Field of View (V, Min, Degree): 20
Total Pixels: 5,000,000 pixels
Video Modes: 1080p
Lens Aperture: F/1.6
Min Focal Length: 3.3 millimetre
Focal Length Control: Motorized zoom
Video Input: Color
Touchscreen: No
Max Video Resolution: 2560 x 1920
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90% RH
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Protection: Weather resistant / impact resistant
Form Factor: Bullet
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 3.3 inch
Width: 3.3 inch
Depth: 8.4 inch
Included Items
Included Accessories: Anchors, Screw mounting kit, Torx L-key, Waterproof connector
