Product Information

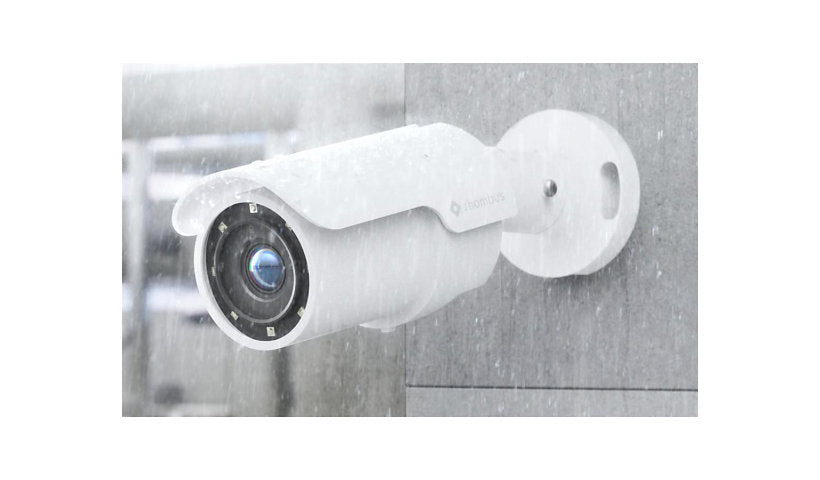

The Rhombus R540 is a 4K (8 MP) bullet camera with a 3.6 to 11 mm motorized lens (3x), IR up to 164 ft and license plate recognition. It has 512 GB onboard for 30 days across two microSD slots, runs on PoE+ and is weather resistant for indoor or outdoor use from -45 to 55 C. Waterproof kit included.
Key Features
- 4K, 8 MP
- 3.6 to 11 mm, 3x
- IR up to 164 ft
- License plate recognition
- 512 GB, 30 days storage
- PoE+, -45 to 55 C
Product Information
Brand: Rhombus
Manufacturer: Rhombus System
Product Line: Rhombus
Model: R540
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 2 microSD card slots, License Plate Recognition, Perimeter protection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-T
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card
Flash Memory Installed: 512 GB
Technical Information
Angular Field of View (D, Max, Degree): 126
Angular Field of View (H, Max, Degree): 111
Angular Field of View (V, Max, Degree): 60
Infrared Distance: 164 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 54
Max Focal Length: 11 millimetre
Optical Zoom: 3
Angular Field of View (H, Min, Degree): 47
Angular Field of View (V, Min, Degree): 26
Total Pixels: 8,000,000 pixels
Video Modes: 4K
Lens Aperture: F/1.5-2.0
Min Focal Length: 3.6 millimetre
Digital Video Capture Resolution: 3864 x 2180
Focal Length Control: Motorized zoom
Video Input: Color
Touchscreen: No
Max Video Resolution: 3864 x 2180
Min Operating Temperature: -49 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Protection: Weather resistant
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.6 inch
Width: 3.6 inch
Depth: 8.9 inch
Included Items
Included Accessories: Anchors, Screw mounting kit, Waterproof kit
Bundled With: 30 days onboard storage (512GB)
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
