Product Information

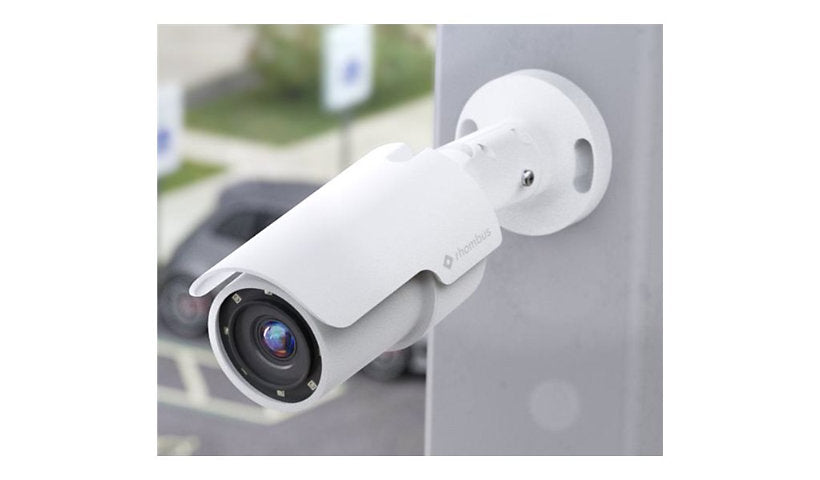

This Rhombus R545 has 1 TB onboard listed for 60 days. The 4K (8 MP) bullet is built for license plate recognition, with an 11 to 28 mm motorized telephoto lens (2.5x), IR, perimeter protection and 2 microSD slots, on PoE+. Indoor or outdoor, waterproof kit and screws included. TAA compliant.
Key Features
- 4K, 8 MP
- 11 to 28 mm telephoto
- License plate recognition
- 1 TB, 60 days storage
- IR illumination
- PoE+, TAA compliant
Product Information
Brand: Rhombus
Manufacturer: Rhombus System
Product Line: Rhombus
Model: R545
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 2 microSD card slots, License Plate Recognition, Perimeter protection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-T
Ports: LAN/power - RJ-45
Memory and Processor
Flash Memory Installed: 1 GB
Technical Information
Angular Field of View (D, Max, Degree): 45
Angular Field of View (H, Max, Degree): 39
Angular Field of View (V, Max, Degree): 22
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 18
Max Focal Length: 28 millimetre
Optical Zoom: 2.5
Angular Field of View (H, Min, Degree): 15.7
Angular Field of View (V, Min, Degree): 9
Total Pixels: 8,000,000 pixels
Video Modes: 4K
Lens Aperture: F/1.47-1.69
Min Focal Length: 11 millimetre
Digital Video Capture Resolution: 3840 x 2160
Focal Length Control: Motorized zoom
Video Input: Color
Touchscreen: No
Max Video Resolution: 3840 x 2160
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Protection: Weatherproof
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.6 inch
Width: 3.6 inch
Depth: 8.9 inch
Weight: 28.92 ounce
Included Items
Included Accessories: Anchors, Screw mounting kit, Waterproof kit
Bundled With: 60 days onboard storage (1TB)
