Product Information

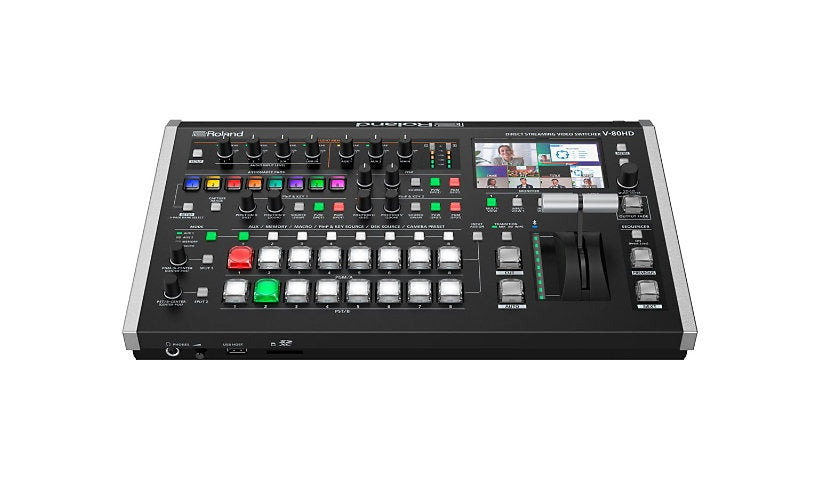

The Roland V-80HD is a versatile professional video switcher and mixer that handles 8 video channels with 4K resolution support. A built-in 4.3 in LCD and take bar make operation easy, with effects including chroma key, dissolve and fade. Comprehensive audio mixing, streaming encoding, recording and scaling are built in, along with Bluetooth, H.264 codec support, phantom power, PTZ camera control and an SD card slot. Flexible SDI, HDMI and USB connectivity fits any setup, and it operates from 0°C to 40°C for live events and studio use.
Key Features
- 8-channel video switcher/mixer
- 4K support
- Built-in 4.3 in LCD and take bar
- Audio mixer, streaming encoder, recorder
- PTZ camera control, SD card slot
Product Information
Brand: Roland
Manufacturer: Roland
Product Line: Roland
Model: V-80HD
Technical Information
Features: 4K resolution support, Bluetooth support, Built-in 4.3" LCD, H.264 codec support, HDCP suppport, Phantom power, PTZ camera control, SD Memory Card slot
Dimensions and Weight
Width: 15.6 inch
Height: 4.1 inch
Depth: 10 inch
Weight: 7.72 lbs
Additional Information
Display Type: LCD display
Controllers: Take bar
Features for Combined Devices: Audio mixer, Streaming encoder, Video recorder, Video scaler
Video Channels Quantity (SD): 8-channel
Video Input Type: Video switcher/mixer
Max Operating Temperature: 104 degree Fahrenheit
Max Power Consumption: 51 watt
Min Operating Temperature: 32 degree Fahrenheit
Terminals: 1 x audio input - RCA x 2, 1 x audio output - XLR x 2, 1 x CTL - 6.35 mm TRS, 1 x EXP port - 6.35 mm TRS, 1 x headphones - phone stereo 6.3 mm, 1 x network - RJ-45 - Gigabit Ethernet, 1 x RS-232 - DB9, 1 x tally/GPIO - DB25, 1 x USB Host - 4 pin USB type A, 1 x USB-C, 2 x audio input - XLR/TRS, 2 x HDMI input - 19 pin HDMI Type A - pass-through, 2 x SDI output - BNC, 3 x HDMI output - 19 pin HDMI Type A, 4 x HDMI input - 19 pin HDMI Type A, 4 x SDI input - BNC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this fits your setup? Send us the devices and ports you are connecting, and the DatorPro team will help you confirm compatibility, length and performance before you order.
