Product Information

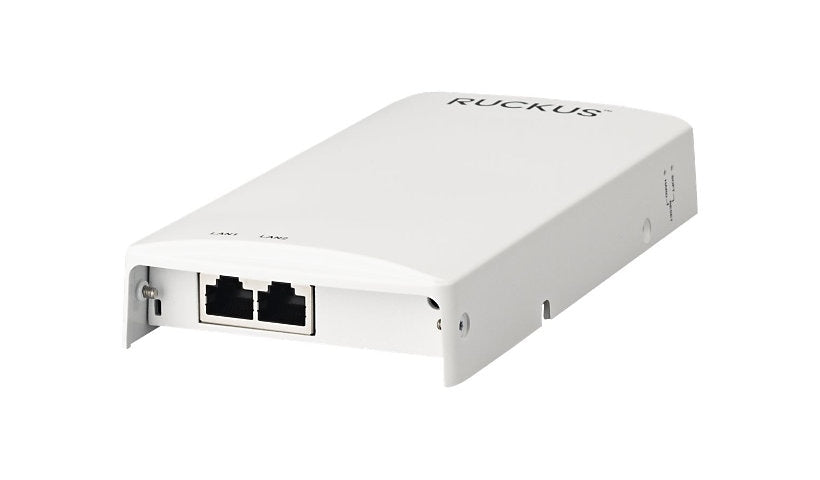

Ruckus' H350 is a wall plate style Wi-Fi 6 AP that fits over a standard electrical junction box and includes an integrated switch. It uses 2x2 radios with BeamFlex+, adds Bluetooth and Zigbee, and has a Gigabit PoE uplink plus two 10/100 RJ-45 ports. It draws about 12.54 W.
Key Features
- Wi-Fi 6, 2x2, BeamFlex+
- Wall plate over junction box
- Gigabit PoE uplink
- 2 x 10/100 RJ-45 ports
- Bluetooth and Zigbee
- About 12.54 W
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus
Model: H350
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Network Standard: L2TP
Routing Protocol: GRE
Authentication Method: Active Directory, Basic Service Set Identifier (BSSID), LDAP, RADIUS
Encryption: AES, TKIP, WPA, WPA-PSK, WPA2
Capacity: Maximum number of clients: 512, SSIDs per radio: 8
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth, ZigBee
Network Band: 2.4 GHz, 5 GHz
Network Device: Max transmit power on 2.4 GHz: 19 dBm, Max transmit power on 5 GHz: 22 dBm, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1200 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Gain Level: 1 DBi
Features: 2x2 SU-MIMO technology, BeamFlex+ Smart Antenna Technology, Deep Packet Inspection (DPI), IPv4 support, IPv6 support, LDAP support, Manageable, Multiple SSID support, Quality of Service (QoS), RADIUS support, Rate limit, SmartMesh, VLAN support, VoIP support, Wall mountable, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45, 2 x 100Base-TX - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 12.54 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall Mountable
Dimensions and Weight
Height: 1.2 inch
Width: 3.5 inch
Depth: 7 inch
Weight: 9.73 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
