Product Information

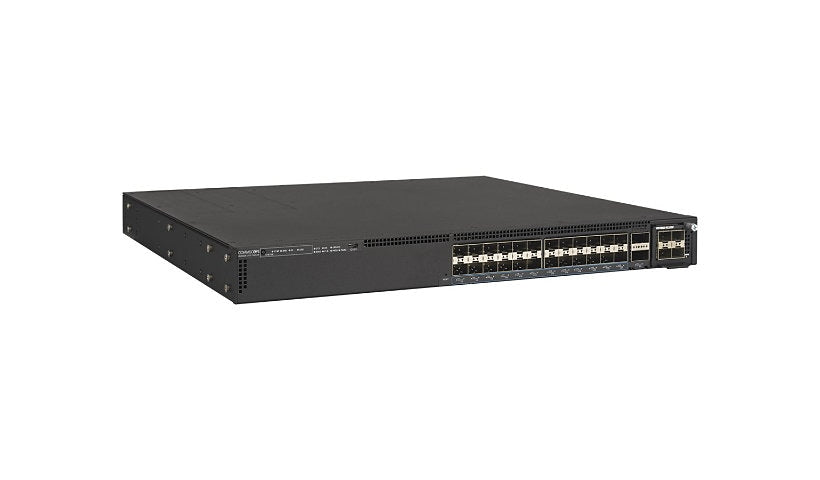

Ruckus' ICX7550-24F-E2 is a stackable Layer 3 switch with 24 1/10G SFP+ ports and two 40/100G QSFP ports for uplink or stacking. It offers 880 Gbps of switching capacity and stacks up to 12 units, with two hot-plug power supplies installed in a 1+1 setup.
Key Features
- 24 x 1/10G SFP+ ports
- 2 x 40/100G QSFP uplink/stacking ports
- 880 Gbps switching, 655 Mpps
- Stack up to 12 units, 2.4 Tbps stacking
- 2 hot-plug power supplies, 1+1
- Rack mount
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ICX
Model: 7550-24F-E2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP
Routing Protocol: ECMP, RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: AES
Performance: Aggregate stacking bandwidth: 2.4 Tbps, Forwarding capacity: 655 Mpps, Switching capacity: 880 Gbps
Capacity: Maximum ports per trunk: 32, Multicast groups: 8192, Priority QoS queues: 48, PVLANs supported: 256, Spanning Tree Protocol instances: 512, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128
Jumbo Frame Support: 12288 bytes
Stackable: Stackable
Features: 802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Flexible authentication, Flow control, Full duplex capability, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, SmartZone, Strict Priority (SP), Syslog support, Telnet client, Telnet server, Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Switch Redundancy Protocol (VSRP) support, Voice VLAN, Web authentication, Weighted Round Robin (WRR)
Max Units In A Stack: 12
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 1 Gigabit / 10 Gigabit SFP+
Ports (2nd) Quantity: 2
Ports Type (2nd): 40/100 Gigabit QSFP+
Interface Provided: 1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45, 2 x 100Gbit/40Gbit LAN QSFP+ uplink/stacking, 24 x 1/10GBase-X SFP+
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 142.7 watt
Power Provided: 400 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
MTBF: 853,073 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 16 inch
Weight: 13.32 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
