Product Information

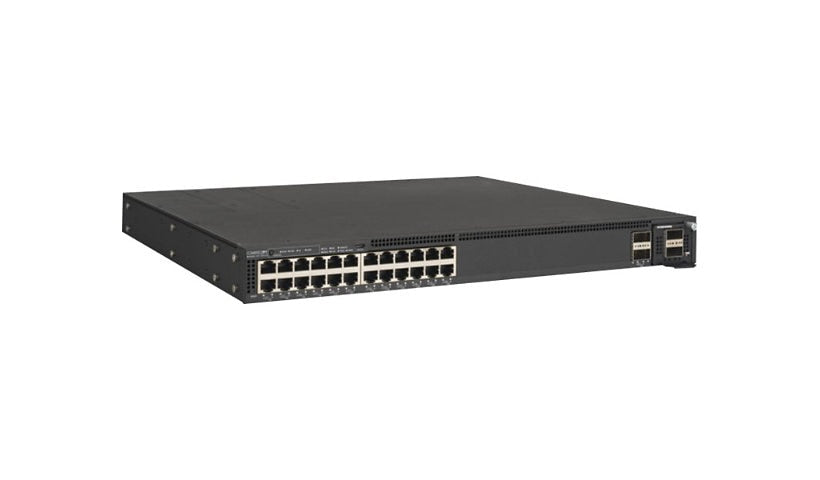

Ruckus' ICX7550-24XZP-E2 is a stackable Layer 3 switch with 24 multi-gigabit RJ-45 PoE ports from 100M up to 10G and two 40/100G QSFP28 ports for uplink or stacking. It stacks up to 12 units, supports 1+1 hot-plug power and uses front to back airflow.
Key Features
- 24 x 100M/1G/2.5G/5G/10G RJ-45 PoE ports
- 2 x 40/100G QSFP28 uplink/stacking ports
- Stack up to 12 units
- Layer 3 managed
- Hot-plug power, 1+1 supported
- Front to back airflow
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ICX
Model: 7550-24XZP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP
Routing Protocol: ECMP, RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Jumbo Frame Support: 12288 bytes
Stackable: Stackable
Max Units In A Stack: 12
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 100/1000/2.5G/5G/10GBase-T
Ports (2nd) Quantity: 2
Ports Type (2nd): 40/100 Gigabit QSFP+
Interface Provided: 1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45, 2 x 100Gbit LAN QSFP28 uplink/stacking, 24 x 10GBase-T RJ-45
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Power
Device Type: Internal power supply
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 4 GB
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 16 inch
Weight: 15.39 lbs
Certifications and Listing
Compliant Standards: AS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
