Product Information

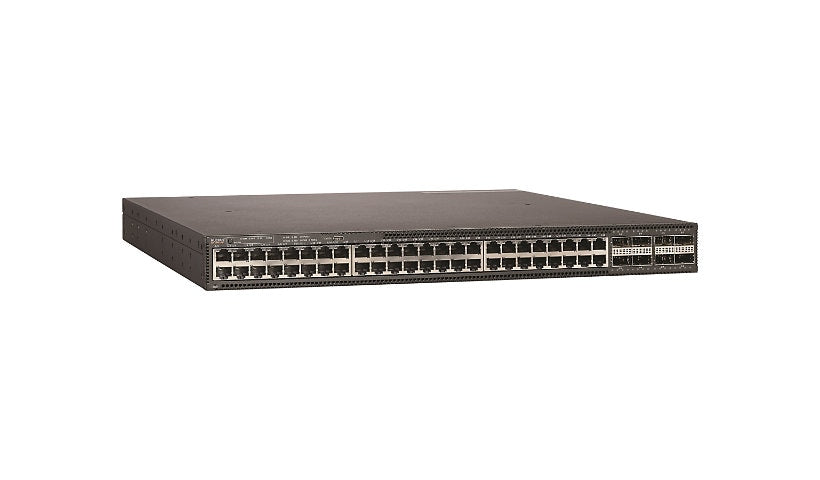

Ruckus' ICX7850-48C is a stackable Layer 3 aggregation switch with 48 10GBASE-T ports and eight 40/100G QSFP28 ports. It offers 2.56 Tbps of switching capacity and 1.9 Bpps, stacks up to 12 units and ships with two hot-plug power supplies.
Key Features
- 48 x 10GBASE-T RJ-45 ports
- 8 x 40/100G QSFP28 ports
- 2.56 Tbps switching, 1.9 Bpps
- Stack up to 12, 9.6 Tbps stacking
- 32 MB packet buffer
- 2 hot-plug power supplies, 1+1
Product Information
Brand: Ruckus
Manufacturer: Ruckus Wireless
Product Line: Ruckus ICX
Model: 7850-48C
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, HTTPS, NTP, RADIUS, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TACACS+, Telnet, TFTP
Routing Protocol: ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-1, RIP-2, RIPng, Static IP routing, VRRP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: AES
Performance: Aggregate stacking bandwidth: 9.6 Tbps, Forwarding capacity: 1.9 Bpps, Switching capacity: 2.56 Tbps
Capacity: IPv4 routes: 128000, IPv6 routes: 7000, Latency: 0.8 μs, Layer 2 multicast groups: 8192, Layer 3 multicast groups: 8192, Maximum ports per trunk: 16, PVLANs supported: 256, Spanning Tree Protocol instances: 254, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128
MAC Address Table Size: 96K entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Features: 32MB packet buffer, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Broadcast Storm Control, Carrier Sense Multiple Access with Collision Detection (CSMA/CD), Class of Service (CoS), DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, Digital Optical Monitoring (DOM) support, DoS attack prevention, DSCP based QoS, DSCP based ToS, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Failover protection, Flow control, Full duplex capability, GARP VLAN Registration Protocol (GVRP), Hot swappable fan, Hybrid OpenFlow 1.3, IGMP proxy, IGMP snooping, In-Service Software Upgrade (ISSU), Inter-Packet Gap (IPG) adjustment, Layer 2 switching, Link Aggregation, Link Aggregation Control Protocol (LACP), Link Fault Signaling (LFS), LLDP support, LLDP-MED, Load balancing, MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MLD snooping, MRP-II support, Multi-Chassis Trunking (MCT), Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Network Access Control (NAC), OpenFlow support, Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), Port Loop Detection, Port mirroring, Private VLAN, Protected ports, PVLAN support, Q-in-Q tunneling, Quality of Service (QoS), Rapid PVST+ (RPVST+), Rapid Reconfiguration of Spanning Tree (RSTP), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Reset button, Reverse airflow support, Root Guard, Secure Copy (SCP), sFlow, SmartZone, Software Defined Networking (SDN), Spanning Tree Protocol (STP) support, Strict Priority (SP), Strict Priority Queuing (SPQ), Syslog support, Telnet client, Telnet server, Trunking, Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unicast Storm Control, Unknown Storm Control, Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Route Redundancy Protocol (VRRP) support, Virtual Routing and Forwarding (VRF), Virtual Switch Redundancy Protocol (VSRP) support, VLAN support, VLAN Tagging, Voice VLAN, Weighted Round Robin (WRR) queuing
Max Units In A Stack: 12
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10GBase-T
Ports (2nd) Quantity: 8
Ports Type (2nd): 40 Gigabit / 100 Gigabit QSFP28
Interface Provided: 1 x console (USB) Type C, 1 x console RJ-45 management, 1 x management (Gigabit LAN) RJ-45, 1 x USB Type A, 48 x 10GBase-T RJ-45, 8 x 40/100Gbit LAN QSFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 254.4 watt
Power Provided: 650 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
MTBF: 222,514 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 17.5 inch
Weight: 20.06 lbs
Certifications and Listing
Compliant Standards: AS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55022, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
